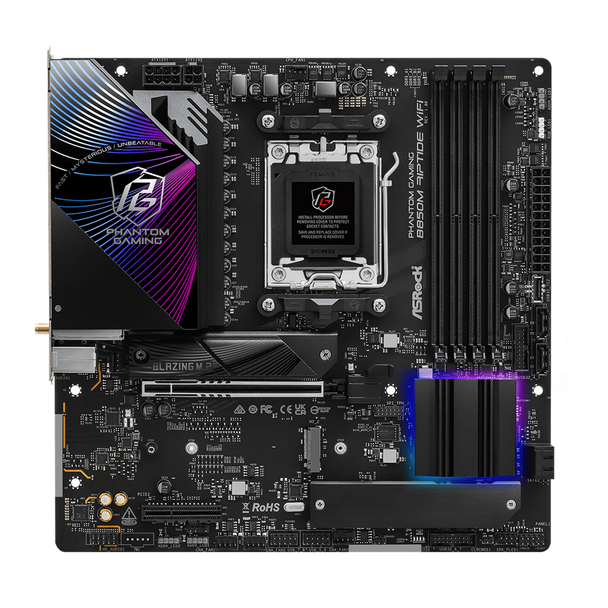

ASRock B850M Riptide WiFi AM5 AMD M-ATX Motherboard

Superb Productivity

- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5

Rock-Solid Durability

- 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Gaming

- 2.5G LAN, 802.11be Wi-Fi 7 Module

EZ Update

- BIOS Flashback Button
- ASRock Auto Driver Installer

EZ Troubleshooter

- ASRock Post Status Checker

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

- Dual Channel DDR5 Memory Technology


- 4 x DDR5 DIMM Slots


- Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)


- Max. capacity of system memory: 192GB


- Supports Intel® Extreme Memory Profile (XMP) 3.0

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)


- Impedance Sensing on Rear Out port


- Individual PCB Layers for R/L Audio Channel


- Nahimic Audio

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s


- Dragon RTL8125BG


- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control


- Visual User Friendly UI


- Visual Network Usage Statistics


- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

- 802.11be Wi-Fi 7 Module


- Supports IEEE 802.11a/b/g/n/ac/ax/wifi7/be


- Supports 2.4GHz, 5GHz and 6GHz bands


- Supports 160MHz channel bandwidth with 6GHz spectrum band


- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology


- Supports Bluetooth 5.4


- Supports MU-MIMO

* The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*

Chipset:

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*


Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices


- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

* Requires additional M.2 NVMe expansion cards to support RAID 10

CPU:

- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))


Chipset:

- 1 x USB 3.2 Gen1 Type-C (Front)
- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection

- 1 x SPI TPM Header


- 1 x Power LED and Speaker Header

- 1 x RGB LED Header


- 3 x Addressable LED Headers

- 1 x CPU Fan Connector (4-pin)


- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)


- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)


- 1 x 24 pin ATX Power Connector

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)


- 1 x Front Panel Audio Connector


- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card)


- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)


- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)


- 1 x Front Panel Type C USB 3.2 Gen2x2 Header


* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.

- 2 x Antenna Ports


- 1 x HDMI Port


- 1 x DisplayPort 1.4


- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)


- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)


- 4 x USB 3.2 Gen1 Ports


- 2 x USB 2.0 Ports


- 1 x RJ-45 LAN Port


- 1 x Clear CMOS Button


- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Software

- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*


UEFI

- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

- 1 x User Manual


- 2 x SATA Data Cables


- 1 x ASRock WiFi 2.4/5/6 GHz Antenna


- 3 x Screws for M.2 Sockets

- 1 x Standoff for M.2 Socket

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm


- 2-oz Copper PCB

- FCC, CE


- ErP/EuP ready (ErP/EuP ready power supply is required)
