Description

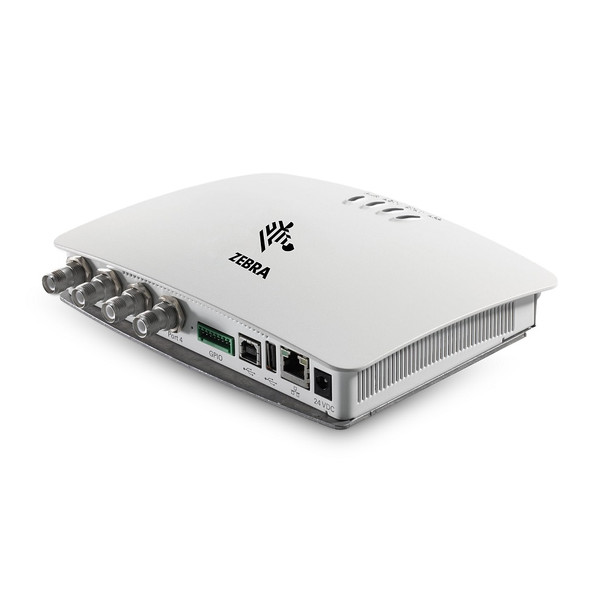

Zebra FX7500 Fixed RFID Reader
Models:FX7500 Fixed RFID Reader
Advanced Fixed RFID Reader for Business-Class Environments
The new FX7500 Fixed RFID Reader introduced advanced RFID radio technology for faster, more accurate read rates, and more consistent performance, even in challenging environments. The new radio is paired with a more flexible Linux-based network architecture that integrates the tools and open-standard interfaces needed for fast, easy deployment with RFID and back-end applications. The result is a fixed RFID reader that sets a new performance standard ⏤ delivering peak performance at all times with excellent reader sensitivity and better interference rejection at a lower cost per read point.
Features
- All-New High Performance Radio Technology
- Easy to Deploy, Manage and Scale
Physical Characteristics
Dimensions | 7.7 in. L x 5.9 in. W x 1.7 in. D |
Weight | 1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg) |
Housing Material | Die-cast aluminum, sheet metal and plastic |
Visual Status | Multicolor LEDs: Power, Activity, Statusand Applications |
Mounting | Keyhole and standard VESA (75mm x 75mm) |
Environmental
Operating Temp. | -4° to +131° F/-20° to +55° C |
Storage Temp. | -40° to +158° F/-40° to +70° C |
Humidity | 5-95% non-condensing |
Shock/Vibration | MIL- STD-810G |
Regulatory Compliance
Safety | UL 60950-01, UL 2043, IEC 60950-1, EN 60950-1 |
RF/EMI/EMC | FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3 |
SAR/MPE | FCC 47CFR2:OET Bulletin 65; EN 50364 |
Other | ROHS, WEEE |
Recommended Services
Support Services | Service from the Start Advance Exchange On-Site System Support |
Advanced Services | RFID Design and Deployment Services |
Connectivity
Communications | 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B)*, USB Host Port (Type A)* |
General Purpose I/O | 2 inputs, 3 outputs, optically isolated |
Power Supply | POE, POE+ or +24V DC (UL Approved) |
Antenna Ports | FX 7500-2: 2 mono-static ports (Reverse Polarity TNC) FX 7500-4: 4 mono-static ports |
Hardware, OS and Firmware Management
Processor | Texas Instruments AM3505 (600 Mhz) |
Memory | Flash 512 MB; DRAM 256 MB |
Operating System | Linux |
Firmware Upgrade | Web-based and remote firmware upgrade capabilities |
Management Protocols | RM 1.0.1 (with XML over HTTP/HTTPS and |
Network Services | DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, |
Network Stack | IPv4 and IPv6 |
Security | Transport Layer Security Ver 1.2, FIPS-140 |
Air Protocols | EPCglobal UHF Class 1 Gen2, ISO 18000-6C |
Frequency (UHF Band) | Global Reader: 902 MHz–928 MHz (Maximum, supports countries that use a part of this band), 865 MHz–868 MHz |
Transmit Power Output | 10 dBm to +31.5 dBm (POE+, 12V ~48V External DC, Universal 24V DC Power Supply); |
Max. Receive Sensitivity | -82 dBm |
IP addressing | Static and Dynamic |
Host Interface Protocol | LLRP |
API Support | Host Applications–.NET, C and Java EMDK; Embedded Applications–C and Java SDK |
Warranty
| The FX7500-2 and FX7500-4 are warrantied against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions. |
