Yealink MVC S98 Microsoft Teams Video Conference System for ProAV Rooms

Yealink MVC S98 Microsoft Teams Room Video Conference System - Microsoft Teams Rooms System for ProAV Rooms

Designed for ProAV rooms, MVC S98 is a bundle solution with multiple SmartVision 80 cameras, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled four-lens camera system and future-proof computing power, supporting easy deployment & flexible design and seamless ProAV integration.

Multi-Camera Best View

Multiple SmartVision 80 cameras work together as a system to cover large rooms, ensuring everyone is clearly seen from the best possible angle.

Multi-Camera IntelliFocus

The IntelliFocus feature smoothly displays real-time close-ups of the recent speakers, enhancing major focus on active speakers and face-to-face experience.

Multi-Stream IntelliFrame

Each participant has their own video stream and name tag, clearly and equally visible in Teams. Every speaker is presented front and centered.

Presenter Tracking

Presenter Tracking delivers smooth, lossless tracking with up to 20x optical zoom, maintaining crystal-clear image quality even at distances of up to 20 meters.

Future-Ready AI Power

Empowered by Intel Core Ultra 5 and an integrated NPU delivering up to 34 TOPS AI processing, MCores4 is future-ready to unlock advanced AI-driven collaboration experiences. Purpose-built for smarter meetings, it features a built-in EDID module, CEC support, and seamless IP-based integration with touch consoles, ensuring streamlined deployment and control.

With AVLAN and Internet separation by design, MCores4 upholds enterprise-grade security while enabling high-performance, intelligent meeting spaces. Enjoy frictionless deployment, easier configuration, more smooth and premium meeting experience.

Control Freely

The MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room, whether on the wall or table for flexible collaboration needs.

Designed for ProAV Rooms

Flexible Audio Solutions

MVC S98 can be seamlessly integrated with Yealink pro audio solutions. Choose from a range of voice pickup devices, such as CM50 ceiling microphone, CS10-D ceiling loudspeaker, and AP08 digital signal processor to meet your specific audio needs.

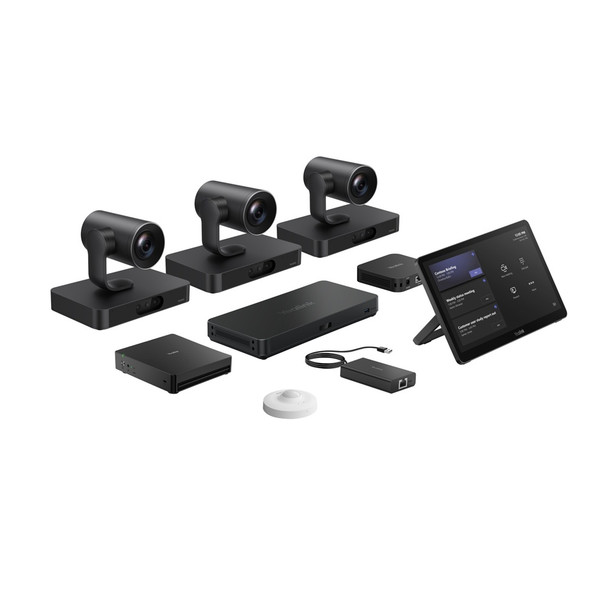

Package Content

MCore 4
MTouch Plus
RoomSensor
SmartVision 80 x 3
AVHub
RCH40 E2
BYOD-Extender


Preload

Windows 11 IoT Enterprise X64
Windows 11 IoT Enterprise License
Microsoft Teams Rooms App
Yealink RoomConnect


MCore 4, Gen-4 Mini-PC

Processor: Intel Ultra5 125H
Memory: 16GB(2*8GB) DDR5
Storage: 256GB SSD
BIOS feature:
3x HDMI video output
-CEC
-EDID
TPM2.0
Kernel DMA
Interfaces:
1 x HDMI-Out 2.1 port
2 x HDMI-Out 2.0 port
1 x HDMI-In port
4 x USB3.0 Type-A Port
1 x MTouch Port (RJ-45)
1 x LAN port for AV network
1 x 10/100/1000 Gigabit Ethernet Port
1 x Power Supply Port
1 x 3.5mm headphone Port
1 x Reset port
1 x Security Slot
WiFi: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: BT 5.2


MTouch Plus

Physical Features:
11.6-inch narrow bezel IPS display
Angle between screen and desktop (30° ~ 70°)
Adjustable angle of support frame (50° ~ 180°)
Function Features:
1920 x 1080 video resolution
Support wired and wireless (with WPP30) content sharing
Support external PD power supply to power the sharing device
Support HDMI/USB-C video input
Support desktop placement, desktop fixed, wall-mounted deployment


RoomSensor

Detection angle: 120°
Adjustable detection angle: ±20°
Operating temperature: 0-40?
Operating humidity: 10-95%


SmartVision 80

Camera:
PTZ Camera: 20×optical zoom
69° DFOV, 61.5° HFOV, 36° VFOV(PTZ Camera)
110° DFOV, 98° HFOV, 82° VFOV(Panoramic Camera)
51° DFOV, 41.6° HFOV, 32° VFOV(Telephoto Camera)
AI Feature:
IntelliFrame
Participant Identification
IntelliFocus
Speaker Tracking
Presenter Tracking
Video Fence
PIP
Auto Framing
Interfaces:
1×USB 3.0 Type-B port
1×USB 2.0 Type-A port
2×VCH port(RJ45)
1×Network Port (RJ45)
1×HDMI out port
1×Line in port
1×Line out port
1×Reset Button
1×DC Power Port


AVHub,audio and video processor

Interfaces
2 x USB-A port
1 x USB-B port
1 x Codec port
7 x Yealink VCH port(RJ-45)
1 x RCA in/out interface
1 x 6.3mm Line in interface
1 x 6.3mm Line out interface
1 x power interface
Function Features:
Dividable and merging meeting rooms are supported
Support intelligent multi-speaker tracking


RCH40 E2

Interface&LED:
4 x 10/100/1000Mbps Port
1 x LED indicates Power state
1 x LED indicates PoE Budget
Physical Feature:
Multiple deployment method
90w total PoE Budget(30w per port)
Support standard PoE Supply(802.3af)
Power adapter: PSE 48V 2A
Dimension(WDH):100mm x 100mm x 23mm
Operating Humidity: 5%-90%


BYOD-Extender

Interfaces:
1.5m USB2.0 Type-A cable
1 x VCH port (RJ45)
Physical Feature:
Operating humidity: 10~95%
Operating temperature: 0~40?
Dimension:89mm x 48mm x 17mm
