Description

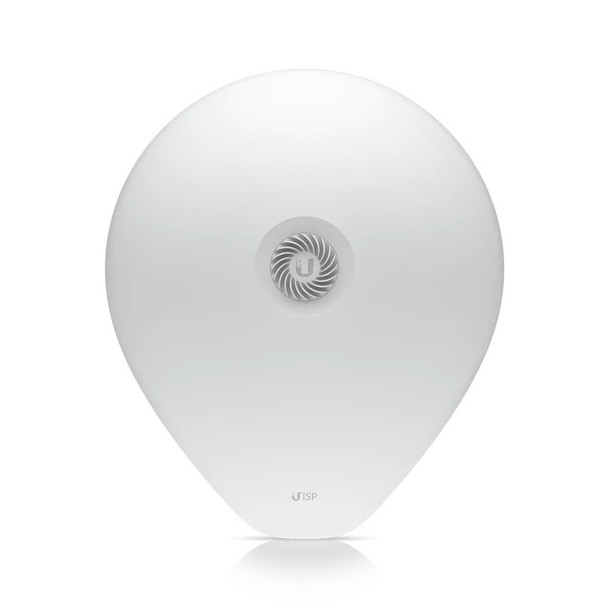

Ubiquiti UISP airFiber 60 XR 60 GHz Long Distance Bridge Radio with 5GHz Failover (Sold Each). Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Features
- 15+ km link range (with 5GHz backup)
- 5.4 Gbps max. throughput
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) GbE and (1) 10G SFP+ port
- Precision alignment mount
- Integrated GPS & Bluetooth
| Details | |
|---|---|
| Manufacturer's Code | AF60-XR (Sold Each) |
| Operating mode | PtP only |
| Max. throughput | 2.5+ Gbps |
| Max. range | 15+ km |
| Encryption | WPA2-PSK (AES) |
| Operating frequency | 57-71 Ghz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region. |
| Management radio | 2400-2483.5 MHz |
| Modulation | 16QAM, BPSK, QPSK |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.4deg, Elevation: 3 dB 1.4deg |
| Electrical downtilt | 0deg |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology Services UISP, ping watchdog, NTP client, device discovery |
| 5GHz Backup frequency | 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Antenna gain | 26 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 5deg, Elevation: 3 dB 5deg |
| Cross-pol isolation | 14 dB |
| 5GHz Electrical downtilt | 0deg |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Management application | UISP web: Version 1.4.3 and later, UISP iOS™: Version 2.20 and later, UISP Android™: Version 2.21.5 and later |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L1 GB |
| Networking interface | (1) GbE RJ45 port, (1) 1/10G SFP+port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) |
| Supported voltage range | 44-54V DC, 22-27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
| Weight | Without mount: 8.6 kg (19 lb), With mount: 13 kg (28.7 lb) |
| Enclosure materials | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |
| Mounting | Precision alignment kit (included), Pole compatibility: 40 to 80 mm (1.5 to 3.15") on pipe outer diameter |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
