Description
| · Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera |
| · 12V powered and dry relays compatible with most locks |
| · Four inputs for motion sensors, request-to-exit devices and door position switch |
| · Managed with UniFi Access Application in UDM-Pro |
| · Includes DIN rail mounting kit |
The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, pushbuttons, and alarms. The three Ethernet PoE powered reader interfaces minimise the need for wiring work and offer a convenient way to add an UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with the UniFi Access application. Easily manage users, visitors, schedules, and access policies with the intuitive browser-based interface.

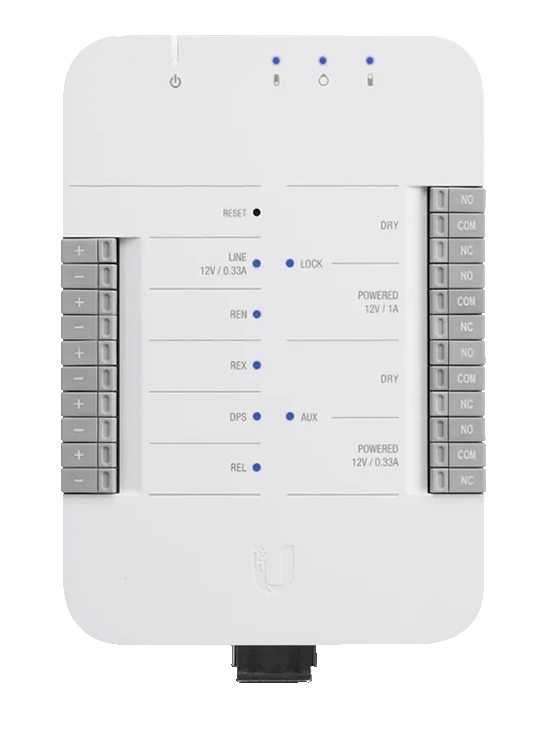

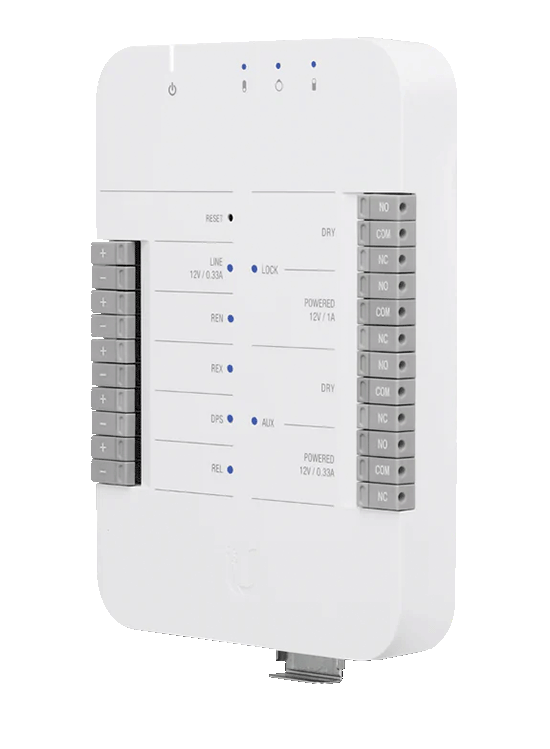

Access Hub
The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimise need for wiring work. The seamlessly integrated UniFi Access solution is managed with the UniFi Access application. Easily manage users, visitors, schedules, and access policies with the intuitive browser-based interface.
Features:
(1) PoE++ RJ45 input
(3) PoE ports to connect Access Readers or Protect cameras
(2) Lock relays to support 12V-powered and dry options
(2) AUX relays to connect an external siren and automatic door opener
(4) Inputs for motion sensors, push buttons, emergency alarms, and a door position sensor

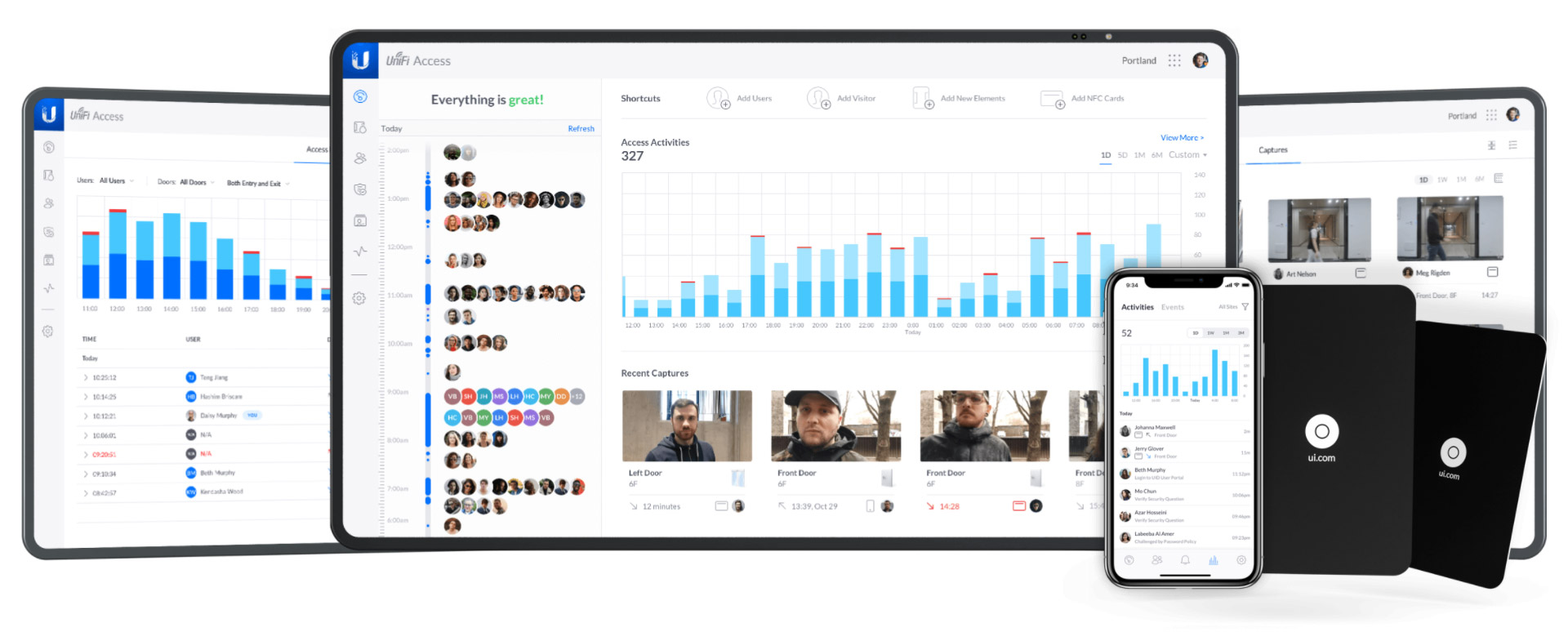

Optimise your building security with the UniFi Access application
View real-time access logs, visitor traffic, and entrance video from a single dashboard.

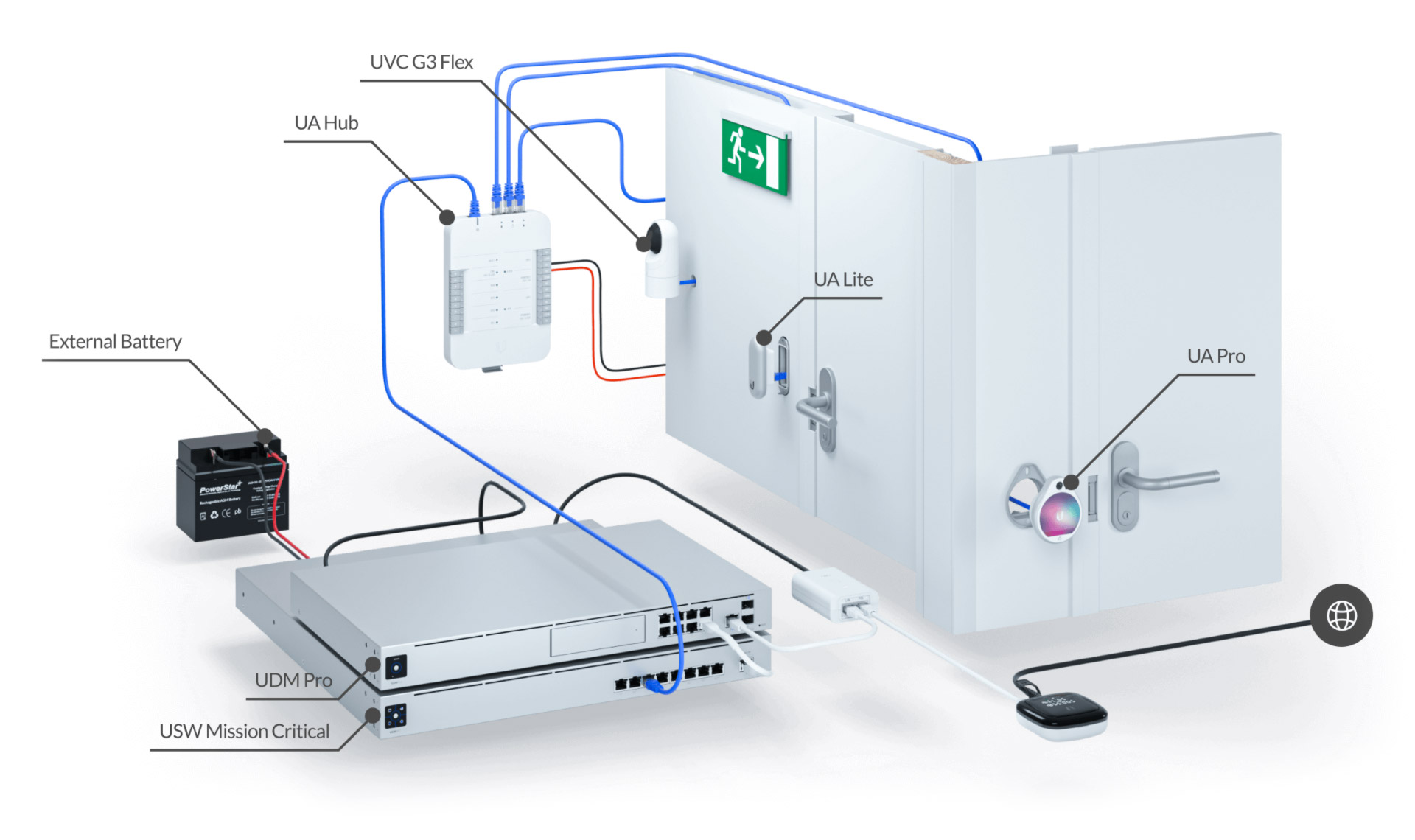

Seamless network integration
Easily integrate your Access devices into a new or existing UniFi System.
190 x 126 x 30.5 mm
457 g
Plastic Enclosure with Metal Mount Plate
DIN rail
(4) 1GbE
40W
PoE++
REX - request to exit
REN - request to enter
REL - remote release
DPS - door position sensor
Lock - Rated 30VDC, up to 1A
Aux - Rated 30VDC, up to 1A
Lock - 12VDC, up to 1A
Aux - 12VDC, up to 0.33A
Line - 12VDC, up to 0.33As
(1) System, (3) PoE out, (4) Input (2) Output Relays, (1) 12VDC Out
(1) Factory reset
0 to 40° C
5 - 90% non condensing
CE, FCC, IC
A single-door mechanism that provides complete entry control via connected Access Readers.
Note: Each UniFi Access component and all third-party accessories are sold separately.
Access Hub
The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimise need for wiring work. The seamlessly integrated UniFi Access solution is managed with the UniFi Access application. Easily manage users, visitors, schedules, and access policies with the intuitive browser-based interface.
- (1) PoE++ RJ45 input
- (3) PoE ports to connect Access Readers or Protect cameras
- (2) Lock relays to support 12V-powered and dry options
- (2) AUX relays to connect an external siren and automatic door opener
- (4) Inputs for motion sensors, push buttons, emergency alarms, and a door position sensor
190 x 126 x 30.5 mm
457 g
Plastic Enclosure with Metal Mount Plate
DIN rail
(4) 1GbE
40W
PoE++
REX - request to exit
REN - request to enter
REL - remote release
DPS - door position sensor
Lock - Rated 30VDC, up to 1A
Aux - Rated 30VDC, up to 1A
Lock - 12VDC, up to 1A
Aux - 12VDC, up to 0.33A
Line - 12VDC, up to 0.33As
(1) System, (3) PoE out, (4) Input (2) Output Relays, (1) 12VDC Out
(1) Factory reset
0 to 40° C
5 - 90% non condensing
CE, FCC, IC
