Description

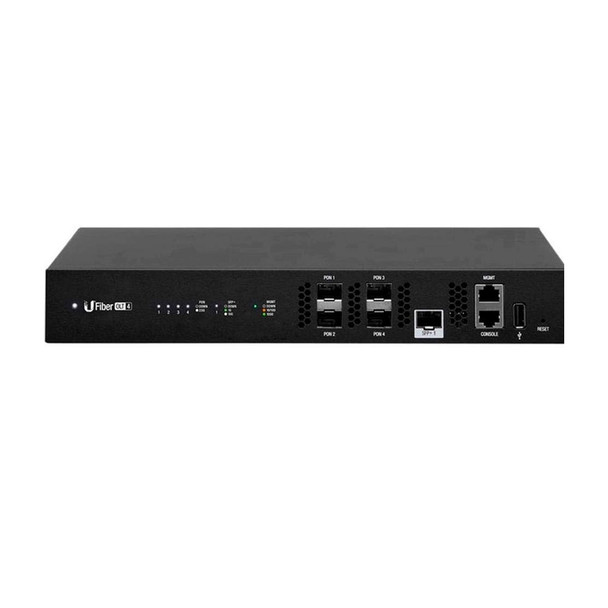

The Ubiquiti UFiber UF-OLT-4 offers four GPON ports and supports up to 512 concurrent clients with physical links of up to 20 km in distance. There is one SFP+ port to provide 10G of uplink connectivity. The UF-OLT-4 provides flexible power options, with Internal AC PSU and 24VDC Barrel Jack.
Features
- Ports: (4) GPON SFP Ports, (1) SFP+ Port
- Concurrent Clients: 512 ONUs
- GPON Range: Up to 20 km Link
- GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
- Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
- Mounting: 1U Rack-Mountable (Optional)
- No License Fees
- Simple Web UI
- Traffic Shaping using the OLT
- Management VLAN
- DHCP Option 82
- Client Isolation
| Details | |
|---|---|
| Manufacturer's Code | UF-OLT-4 |
| Dimensions | 299.80 x 258.95 x 42.55 mm (11.80 x 10.19 x 1.68") |
| Weight | 1.93 kg (4.25 lb), (with Mount Brackets) 2.13 kg (4.70 lb) |
| Networking Interfaces | (4) GPON OLT SFP, (1) 1G/10G SFP+ |
| Concurrent Clients | 512 Registered ONUs/ONTs (128 per GPON Port) |
| Management Interfaces | (1) Ethernet for Out-of-Band Management, (1) RJ45 Serial Console Port |
| GPON Speeds | 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX) |
| Operating Wavelengths | 1490 nm TX, 1310 nm RX |
| Normal Optical Power Range | TX (Class B+): 1.5 dBm to 5 dBm, RX: -28 dBm to -8 dBm |
| Range | Physical Reach: 20km, Logical Reach: 60km, Max. Differential Fiber Distance: 20 km (B+) /40 km (C+) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC Internal 56W DC |
| Max. Power Consumption | 35W (Excluding SFP Modules) |
| Operating Mode | OLT 2/3 Ethernet Switch and GPON Core |
| Advanced QoS | Supports 8 Priority Queues per User Port and Traffic Classification |
| Processor Specs | MIPS 1004kc, 880 MHz Dual Core |
| Memory Information | 512 MB DDR3, 512 MB NAND |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
