Description

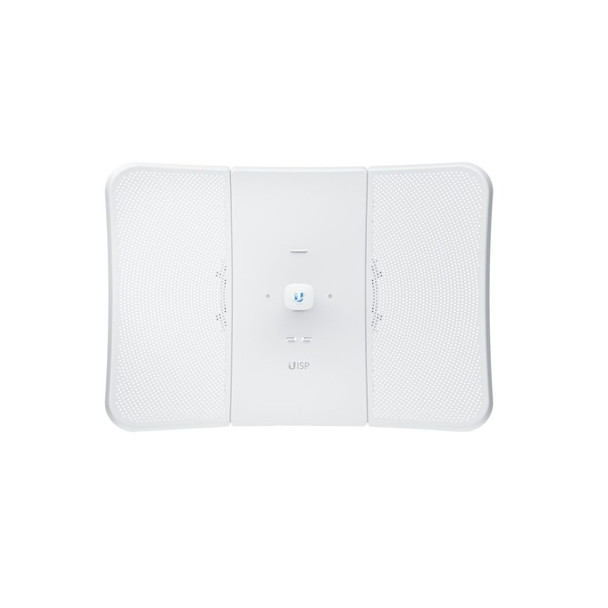

Ubiquiti LTU-XR 5GHz LTU Radio with High 29dBi Gain Antenna. 5 GHz LTU® client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station.
The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP Mobile app.
- Proprietary Ubiquiti LTU core processor
- Long-range, 29 dBi antenna with InnerFeed® technology
- High data and performance rate (1024 QAM)
- Link range up to 35 km
- Channel width flexibility (10/20/30/40/50 MHz bandwidth)
- Central configuration management from the AP side
- Frequency splitting
- Router mode support
- Integrated GPS
- Link planning support via ISP Design Center
- Quick, Bluetooth-powered setup with the UISP Mobile app
DetailsManufacturer's CodeLTU-XR-AUMaximum throughput550 MbpsEncryptionWPA2-PSK (AES)Uplink/downlink ratio25/75, 33/67, 50/50OSairOSModesPtMP CPE onlyOperating frequency5.15 to 5.95 GHz * Depends on regulatory region.Max. conducted TX power25 dBmChannel bandwidth10/20/30/40/50 MHzAntenna Gain29 dBiIsolation20 dBBeamwidthHPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°ServicesSNMP, SSH, dynamic DNS, webserver, remote log, ping watchdogUtilitiesairView, speed test, alignment, discovery, ping, traceroute, cable test, constellationAuto distance adjustmentYesAuto power adjustmentYesNetworkRouter modeSecurityYesStatical reportingYesManagement interfaceBluetooth management for easy setup over UISP App, WEB UIMinimum software requirementsModern Web browser or Android/iOS smartphoneNetworking interfaces(1) GbE RJ45 portButtonFactory resetLEDsPower/ethernetRF connectionsInternalMax. power consumption8.5WPower methodPassive PoE 2-pair (4, 5+; 7, 8-)Power supply24VDC, 0.5A Gigabit PoE adapter (included)Supported voltage range22 to 26VDCOperating temperature-40 to 55° C (-40 to 131° F)Operating humidity5 to 95% non-condensingDimensions747 x 525 x 347 mm (29.41 x 20.67 x 13.66")Weight3.2 kg (7.06 lb)Enclosure materialsAluminum alloy, UV stabilized polycarbonateMount materialUV stabilized polycarbonateMountIntegrated pole mount (included), Pole compatibility: Ø35-60 mm (Ø1.38-2.36")Wind loading1100 N at 200 km/h (247.29 lbf at 125 mph)WeatherproofingIPX6CertificationsFCC, IC, CE
