Description

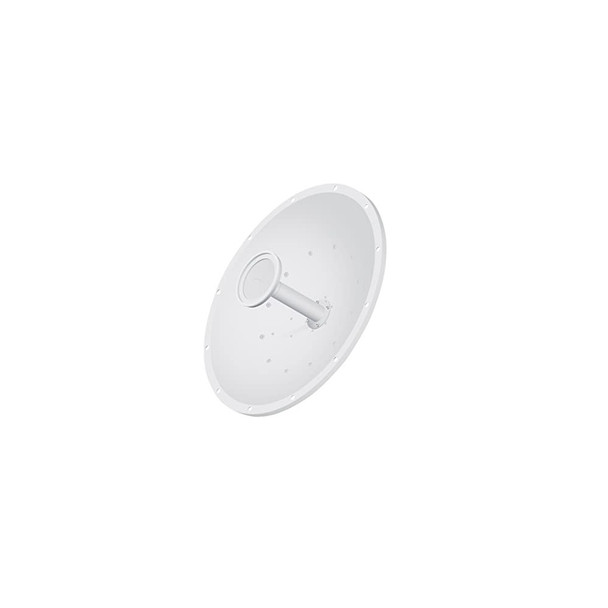

Ubiquiti airMAX 3GHz 26dBi Dual Polarity RocketDish Antenna. The Ubiquiti RocketDish 3GHz Dual Polarised Dish Antenna RD-3G26 delivers Carrier Class Performancefor any licensed 3GHz equipment. Instantly pair with Ubiquiti Rocket M3 to create powerful 2x2 MIMO wireless PtP Bridging applications up to 50km. Rocket mount and weatherproof RF jumpers included. Always seal all outdoor coax cable connections. The Ubiquiti Rocket M3 and AirMax Base Station/Rocket M3 Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax Base Station/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Dual Polarity Antennas.
Features
- Ubiquiti Rocket M3 Seamlessly Integrates with Rocket Dish Antenna.
- Recommended use up to 50km with Ubiquiti RocketM3 Access Point/Bridge Radio.
- Ubiquiti Dual Polarised antennas also work perfectly with MikroTik 802.11n NV2 long range wireless radio cards as well
- The following radome covers are available for this product: RAD-2RD, UDK25 and UDR235
| Details | |
|---|---|
| Manufacturer's Product Code | RD-3G26 |
| Frequency Range | 3.3-3.8 GHz |
| Gain | 26 dBi |
| Polarisation | Dual-Linear |
| Cross Polarisation | 35 dB min |
| Max VSWR | 1.4:1 |
| Vertical Beamwidth | 7 deg. (6 dB) |
| Horizontal Beamwidth | 7 deg. (6 dB) |
| Connector Type | (2) RP-SMA Female |
| Dimensions | 648 mm diameter |
| Wind Loading | 125 mph |
| Pole Mount Diameter | 38 - 100mm |
