Description

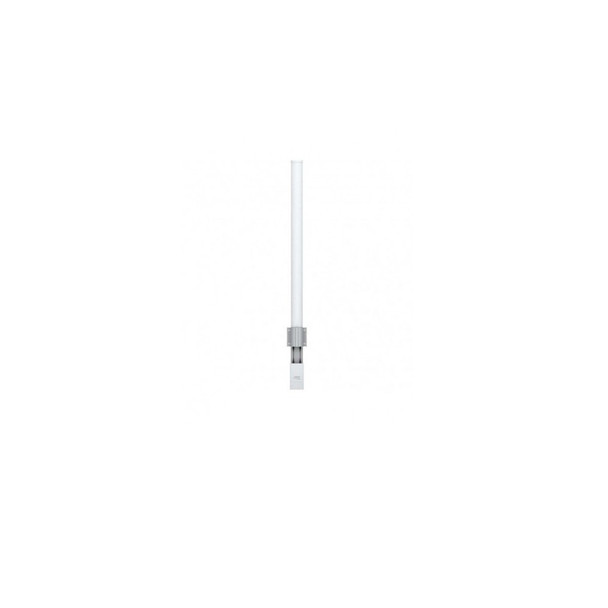

The airMAX Omni Antenna is a 10dBi Carrier Class 2x2 Dual Polarity MIMO Omnidirectional Antenna that was designed to seamlessly integrate with RocketM radios (sold separately). Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation. This seamless integration gives network architects unparalleled flexibility and convenience. The Rocket M combines the “brains” in one robust unit; pair Rocket M with airMAX Omni Antenna to create powerful 2x2 MIMO PtMP Applications. This seamless integration gives network architects unparalleled flexibility and convenience. The Ubiquiti Rocket M radios and airMAX Omni Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax Omni Antennas requires no special tools, you simply snap it into place with the mount provided with the Dual Polarity Antennas. Ubiquiti Dual Polarised antennas also work perfectly with MikroTik 802.11n NV2 long range wireless radio cards as well. Always seal all outdoor coax cable connections with coax seal tape.
| Details | |
|---|---|
| Manufacturer's Product Code | AMO-2G10 |
| Frequency Range | 2.35 - 2.55 GHz |
| Gain | 10 dBi |
| Polarisation | Dual-Linear |
| Cross Polarisation | 25 dB min. |
| Max VSWR | 1.7:1 |
| Elevation Beamwidth | 12° |
| Downtilt | 4° |
| Connector Type | (2) RP-SMA Female |
| Dimensions | 1030 X 122 X 84 |
| Wind Loading | 125 mph |
| Pole Mount Diameter | 38 - 75mm |
