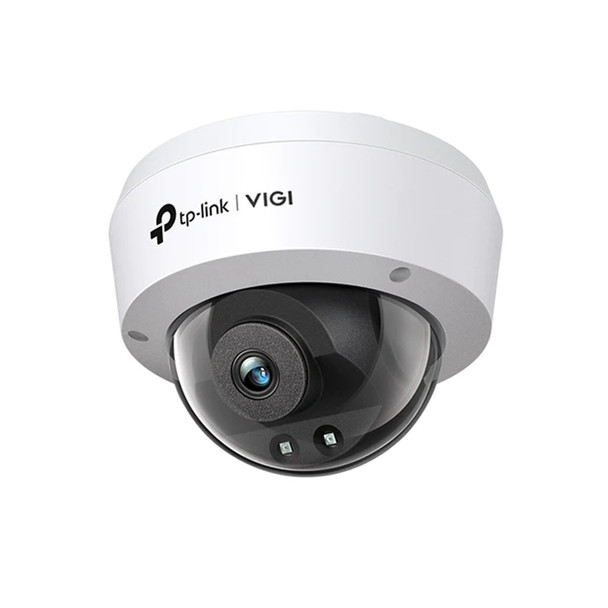

TP-Link VIGI C240 4mm 4MP IR Dome Network Camera

Looking for a higher resolution? It's right here.
4MP Super-High Definition

The VIGI C240I camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

IK10 Vandal-Proof & IP67 Waterproof

With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement

VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC

Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Choose the right lens for your security.
2.8/4 mm Lens

Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C240I comes with two different lens versions to better suit your security needs.

CAMERA

Image Sensor

1/3" Progressive Scan CMOS

Minimum Illumination

Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Lens

2.8 mm/ 4 mm

Aperture

2.8 mm: F2.2
4 mm: F2.2

Lens Mount

M12

Viewing Angle

2.8mm: 88.8°/48.9°/106.5°(H/V/D)
4mm: 75.1°/41.5°/88.7°(H/V/D)

IR Working Distance

30m

Weatherproof Rating

IP67

Digital Noise Reduction

3D DNR

WDR

DWDR

NETWORK

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, VIGI NVR, Web

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

GENERAL

Package Contents

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Operating Temperature

-30-60 °C

Dimensions( H X W X D )

115 × 115 × 86 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Power Consumption

12V DC: Max 5W
PoE: Class 0

Vandal Resistant

IK10

Certifications

CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480,352x288, 320x240

Max. Resolution

4MP (2560 × 1440)

Video Streaming

Main Stream
Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
