Description
A SMARTER WAY TO WORK.

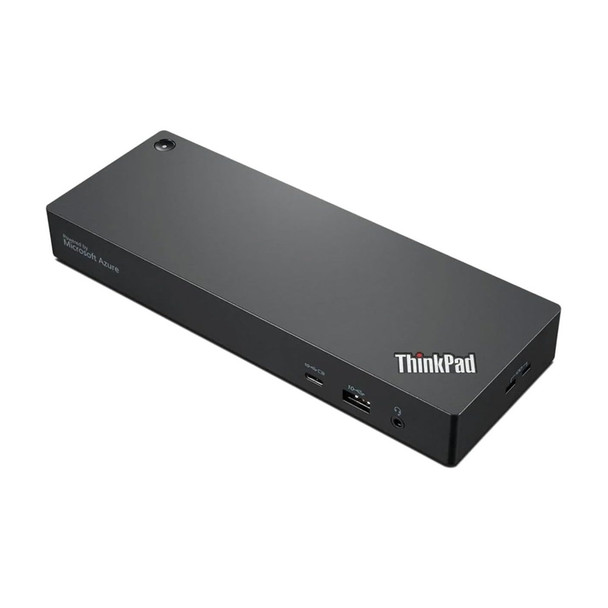

The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.
Features include:
- One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4,
and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can drastically expand the potential of your workspace with ease. - Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
- Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity.
Network & Communication
Ethernet Technology | Gigabit Ethernet |
Power Description
Maximum Power Supply Wattage | 100 W |
Software
Operating System Supported | Windows |
Interfaces/Ports
Host Interface | Thunderbolt 4 |
USB Type C | |
HDMI | Yes |
HDMI Version | 2.1 |
Number of HDMI Ports | 1 |
Network (RJ-45) | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 2 |
Number of HDMI Outputs | 1 |
Total Number of USB Ports | 5 |
Thunderbolt | Yes |
Headphone/Microphone Combo Port | Yes |
Number of RJ-45 Ports | 1 |
USB Type-C | Yes |
DisplayPort Version | 1.4 |
Number of USB Type-C Ports | 1 |
Number of USB Type-A Ports | 4 |
Thunderbolt Ports Quantity | 2 |
USB Type-A | Yes |
Miscellaneous
Package Contents |
|
Compatibility | Lenovo ThinkPad Notebook |
Brand Compatibility | Lenovo |
Physical Characteristics
Weight (Approximate) | 460 g |
Height | 30 mm |
Depth | 80 mm |
Product Color | Red |
Black |
General Information
Product Type | Docking Station |
Manufacturer Part Number | 40B10135AU |
Manufacturer | Lenovo Group Limited |
Product Name | ThinkPad Universal Thunderbolt 4 Smart Dock |
Brand Name | Lenovo |
Technical Information
Device Supported | Notebook/Desktop PC |
Connectivity Technology | Wired |
Number of Displays Supported | 4 |
Supported Resolutions | 3840 x 2160 |
7680 x 4320 | |
Screen Mode Supported | 8K |
4K |
Additional Information
