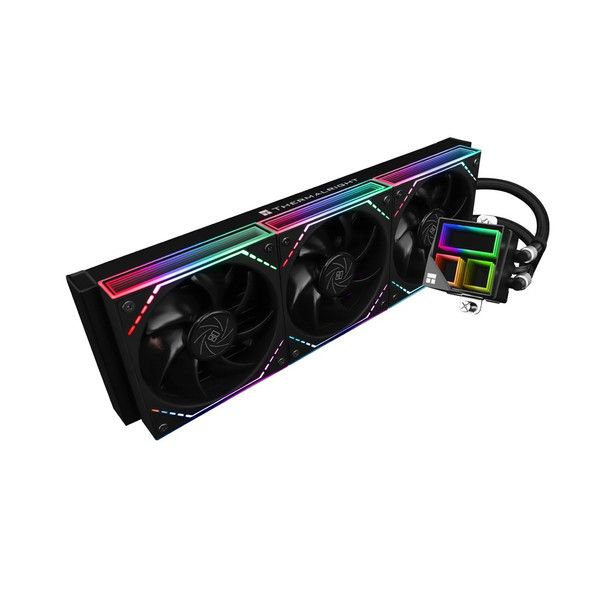

Thermalright Frozen Infinity 360 Black AIO Liquid CPU Cooler

Thermalright Frozen Infinity 360 Black AIO Liquid CPU Cooler

• [Parameters of water-cooled radiator] Water-cooled radiator size is 397*120*52mm (including fan), cold header: 63*63*60mm, fan size: 124*120*25mm, speed: 2000RPM+10%, running noise ≤28.2DB(A), voltage: DC 12V, airflow: 68.9CFM, in the water pump and fan high speed With the high speed of water pump and fan, it can ensure the cooler cools the CPU well.
• [Excellent Cooling Effect] Using Infinity Mirror style water-cooling header + 360 specification fully blackened nano-painted aluminium fins cooling row + polymer compiled protective water pipe + standard configuration 120mm Infinity Mirror fan, we are committed to creating an all-in-one cooler with low resistance, high cooling, and high face value.
• [Infinity Mirror pump design] Pump for the new generation of pump system framework (Core V1.0), square shape of the pump, configure the exclusive Infinity Mirror LOGO light effects, outside the small triangle of frosted cut corners, unique to the design of the cooling, low vibration operation, pump power supply interface for the 4PIN PWM, the light interface for the 5V ARGB, can be accessed separately to the corresponding interface of the motherboard. The cooler is not only effective in dissipating heat, but also provides colourful interest.
• [ARGB Divine Light Synchronisation] The ARGB of the fan and water-cooling header is synchronised with the 5V 3pin on the motherboard to achieve light synchronisation, providing rich lighting effects while cooling efficiently, and supporting light effects in series to avoid insufficient lighting slots.
• [Wide range of compatibility] Support AMD:AM4/AM5,Intel: LGA1150/1151/1155/1156/1200/2011/2066/1700/1851, each platform comes with corresponding installation fasteners, simple installation steps, can be well installed to the corresponding CPU platform, it is recommended to install according to the installation video. If you have any questions, please contact our customer service.

Specification:
Pump Dimensions：L63 mm x W63 mm x H60 mm
Radiator Fimensions：L397 mm x W120 mm x H27 mm
Pump Rated Voltage：12V DC
Connector：4 PIN PWM
ARGB Connector：3 PIN 5V
Radiator：Aluminum
Warranty：5 Years

Product Description
TL-M12 SPECIFICATION：
Dimension：L124 mm x W120 mm x H25 mm
Weight: 175 g
Rated Speed：2000 RPM±10% (MAX)
Noise Level：28.2 dBA (MAX)
Air Flow：68.9 CFM (MAX)
Air Pressure：2.21 mm H2O (MAX)
Connector：4 PIN PWM
ARGB Connector：3 PIN 5V
Bearing Type：S-FDB Bearing
