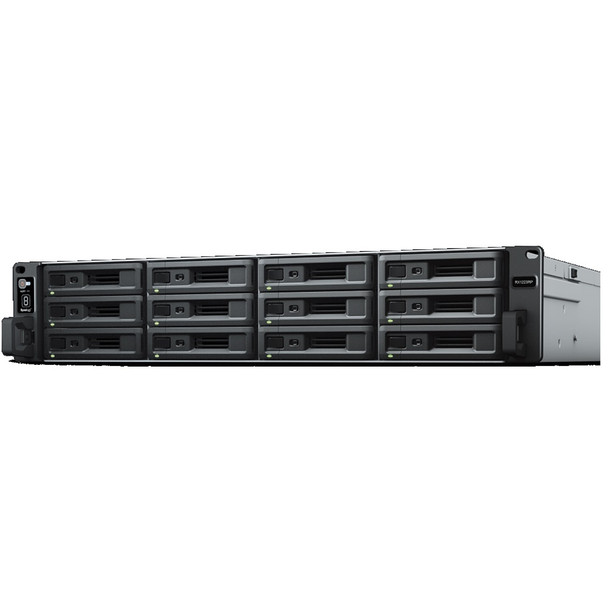

Synology RX1223RP 12-Bay Diskless Rackmount Expansion Unit

Synology RX1223RP 12-Bay Diskless Rackmount Expansion Unit

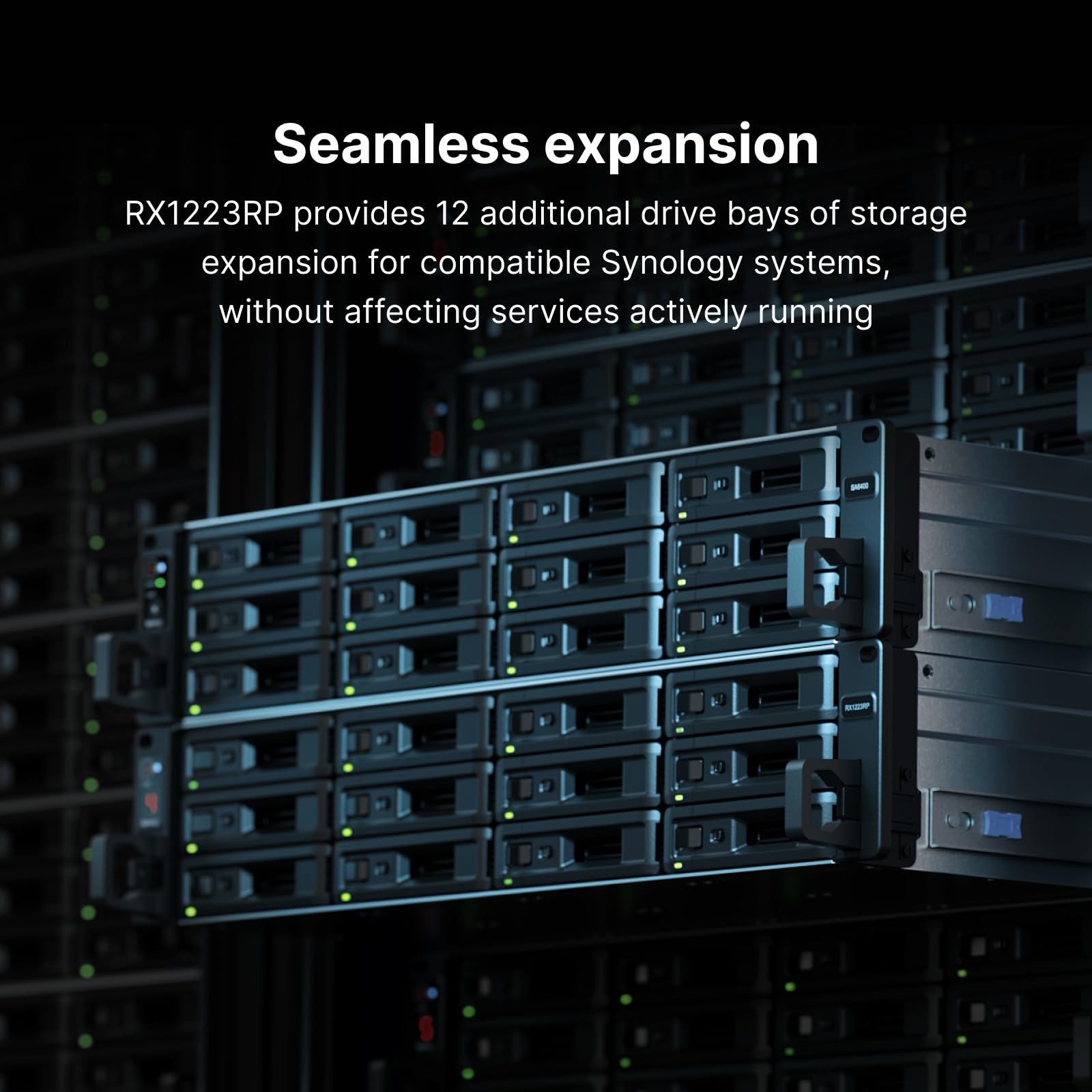

Dependable Capacity Expansion for Synology Servers

Accommodate growing storage demands with ease. The 2U RX1223RP provides 12 additional drive bays of storage expansion. Synology DiskStation Manager's (DSM) easy capacity expansion using Storage Manager allows users to expand their storage in minutes.

Capacity Expansion

Add up to 12 additional 3.5"/2.5" SATA HDD/SSD drives

Simple Configuration

Gain storage expansion in minutes using Synology DSM's unified tools

Hardware Redundancy

Redundant power supply prevents single points of failure

Designed for Synology Drives

Synology drives provide the upmost in reliability and integration

Rapid Deployment

Carry out planned storage expansion or take on unexpected demand for additional storage without skipping a beat. Plug-and-play compatibility means the RX1223RP is ready to use as soon as it is connected to its host device.

The high-speed expansion cable provided enables high bandwidth connectivity for maximum data throughput between your Synology NAS and Expansion Unit. Drives in RX1223RP operate with minimum data latency, as if installed directly on your NAS.

Hardware Redundancy for Increased Reliability

Minimize downtime thanks to modular drive trays and system fans that you can replace quickly and easily in case of malfunction, and eliminate single points of failure with dual power supplies.

Compatible drive types

- 12 x 3.5 or 2.5" SATA HDD/SSD (drives not included)
- Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list.

Hot swappable drives

Yes

External ports

Expansion port (Mini-SAS HD)x 1

Size (HxWxD)

88 x 430.5 x 692 mm
88 x 482 x 724 mm (with server handles)

Weight

13.9 kg

System fans

4 x (80 x 80 x 32 mm)

AC input power voltage

100 V to 240 V AC

Power frequency

50/60 Hz, single phase

Operating environment

Temperature: 0°C to 35°C (32°F to 95°F)
Relative humidity: 8% to 80% RH

Storage environment

Temperature: -20°C to 60°C (-5°F to 140°F)
Relative humidity: 5% to 95% RH

Maximum operating altitude

5,000 m (16,400 ft)
