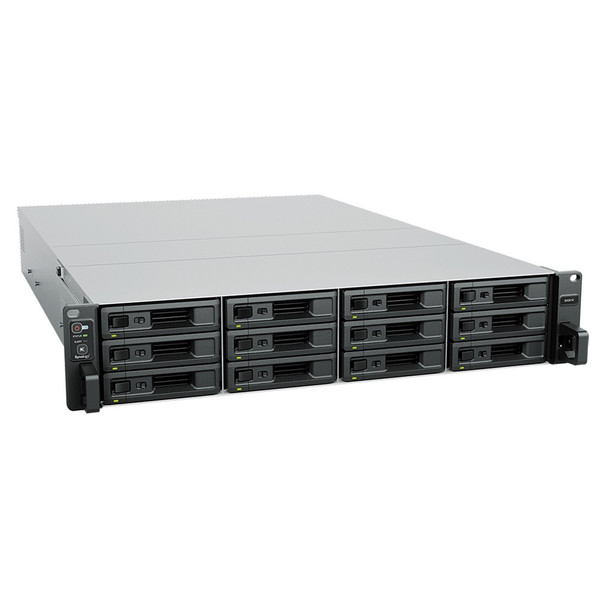

Synology RX1222sas 12-Bay Diskless NAS Expansion Unit

Synology RX1222sas 12-Bay Diskless NAS Expansion Unit

Expansion Unit RX1222sas

Plug-and-play capacity expansion for Synology servers

Accommodate massive storage growth

Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units. Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)'s online volume expansion and powerful volume management options.

Easy setup and management

Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.

Fast and stable with Synology drives

Achieve higher levels of reliability with Synology's SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.

Built with service uptime in mind

RX1222sas's hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.

Applied Models


Supports creating volumes across different units


FS series:FS6400, FS3600, FS3400
SA series:SA3610, SA3600, SA3410, SA3400


Notes


To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
DSM version requirement: 6.2.4-25556 Update 3, 7.0.1-42218 Update 2 or later versions.


Storage


Drive Bays

12


Compatible Drive Type*

3.5" SAS HDD
2.5" SAS SSD
3.5" SATA HDD
2.5" SATA SSD


Hot Swappable Drive*

Yes


RAID Management through Synology DSM


Yes

Notes


Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.


External Ports


SAS IN-port

1


SAS OUT-port

1


Appearance


Size (Height x Width x Depth)

88 mm x 430.5 mm x 692 mm


Size (Height x Width x Depth) (with server ears)

88 mm x 482 mm x 724 mm


Weight

13.5 kg


Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-02)


Notes

The rail kit is sold separately


Power


Power Supply Unit / Adapter

500 W


AC Input Power Voltage

100V to 240V AC


Power Frequency

50/60 Hz, Single Phase


Power Consumption

194.4 W (Access)
82.56 W (HDD Hibernation)


British Thermal Unit

663.48 BTU/hr (Access)
281.77 BTU/hr (HDD Hibernation)


Redundant Power Supply

Yes


Notes

Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).


Temperature


Operating Temperature

0°C to 35°C (32°F to 95°F)


Storage Temperature

-20°C to 60°C (-5°F to 140°F)


Relative Humidity

5% to 95% RH


Others


System Fan

80 mm x 80 mm x 4 pcs


Easy Replacement System Fan

Yes


Noise Level*

54.5 dB(A)


Notes

Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%


Certification


FCC
CE
BSMI
UKCA
EAC
VCCI
RCM
KC


Environment & Packaging


Environment


RoHS Compliant


Packaging Content


Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Expansion Cable: Mini-SAS HD X 2
Quick Installation Guide X 1
