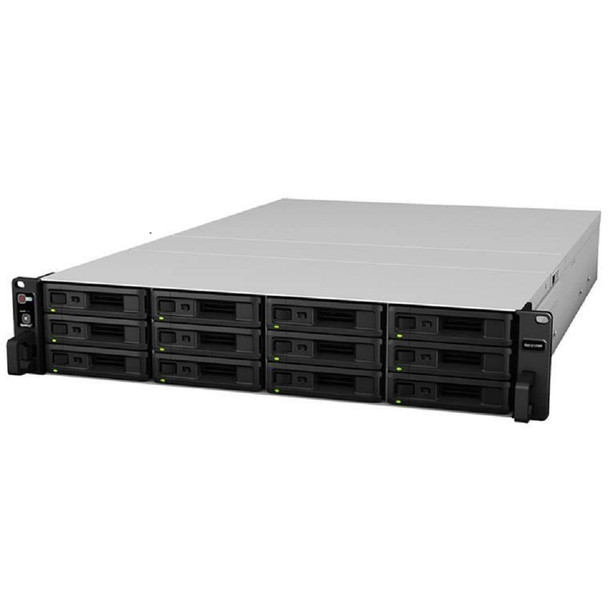

Synology RX1217RP 2U 12 bay Rack Expansion Chassis with Redundant power

Synology RX1217RP 2U 12 bay Rack Expansion Chassis with Redundant power

Scale up your RackStation in a breeze

Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations.


Volume expansion & backup

When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail. When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design

Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation - as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Applied Models
RS3617xs+
RS3614xs+
RS3413xs+
RS3617xs
RS3617RPxs
RS3614(RP)xs
RS3412(RP)xs
RS3411(RP)xs
RS2416(RP)+
RS2414(RP)+
RS2212(RP)+
RS2211(RP)+

Drive Bay(s)
12

Compatible Drive Type (See all supported drives)
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Maximum Internal Raw Capacity
120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)

Hot Swappable Drive
Yes

RAID Management through Synology DSM
Yes

Infiniband port
1

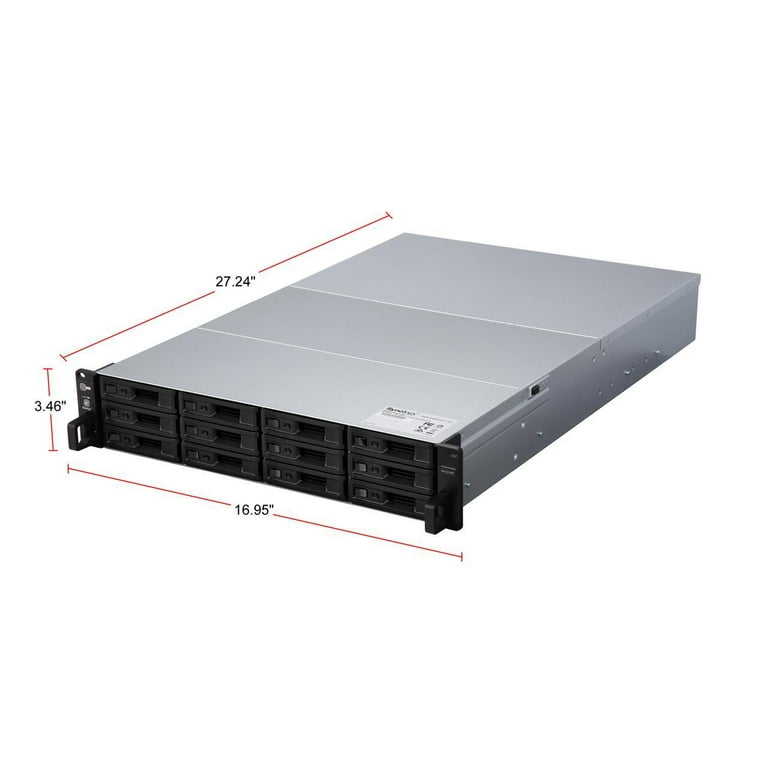

Size (Height x Width x Depth)
88 mm x 430.5 mm x 664 mm
88 mm x 430.5 mm x 692 mm (for RP model)

Weight
12.7 kg
13.4 kg (for RP model)

Power Recovery
Synchronized with the Synology RackStation

Power Supply Unit / Adapter
500W
2 X 500W (for RP model)

AC Input Power Voltage
100V to 240V AC

Power Frequency
50/60 Hz, Single Phase

Power Consumption
68.60 W (Access)
27.45 W (HDD Hibernation)
71.32 W (Access, for RP model)
31.20 W (HDD Hibernation, for RP model)

British Thermal Unit
234.23 BTU/hr (Access)
93.73 BTU/hr (HDD Hibernation)
243.52 BTU/hr (Access, for RP model)
106.53 BTU/hr (HDD Hibernation, for RP model)

Operating Temperature
5°C to 35°C (40°F to 95°F)

Storage Temperature
-20°C to 60°C (-5°F to 140°F)

Relative Humidity
5% to 95% RH
