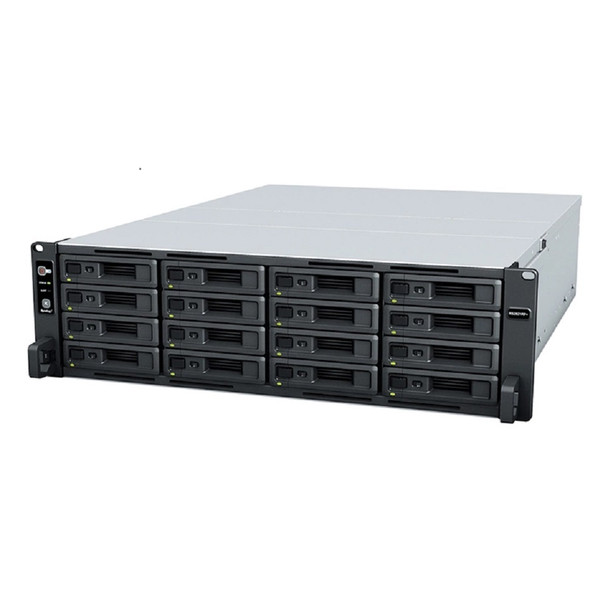

Synology RS2821RP+ 3U Rack 16 Bay Diskless NAS with Redundant Power

Synology RS2821RP+ 3U Rack 16 Bay Diskless NAS with Redundant Power

High-performance, general purpose storage solution for small to medium sized businesses.

Versatile and scalable storage

Synology RS2821RP+ is a 3U 16-bay storage server designed to accommodate a diverse set of business requirements. Scalable to 28 drives, the unit provides powerful backup and restoration functionality for the SMB sector. It delivers 2,200 MB/s sequential read and 105K 4K random read performance*1, and can be upgraded with SSD cache and 10/25Gb Ethernet*2 options.

High performance storage for anything

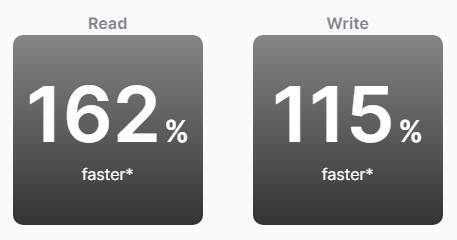

Over 105K/59K random read/write IOPS and up to 2,220/1,164 MB/s sequential read/write throughput ensure ample performance for demanding workloads.*1

- 4K Random IOPS

- Sequential Throughput

* compared to predecessor RS2818RP+

Built for reliability

Redundant power - Reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.

Near-zero downtime - Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails.

Data integrity and protection - ECC memory brings higher system reliability, while the Btrfs file system helps prevent data corruption, supports snapshot technology, and simplifies data protection.

Customize to suit

Easily adapt RS2821RP+ to any business environment by adding faster networking, local SSD cache, or storage capacity.*2

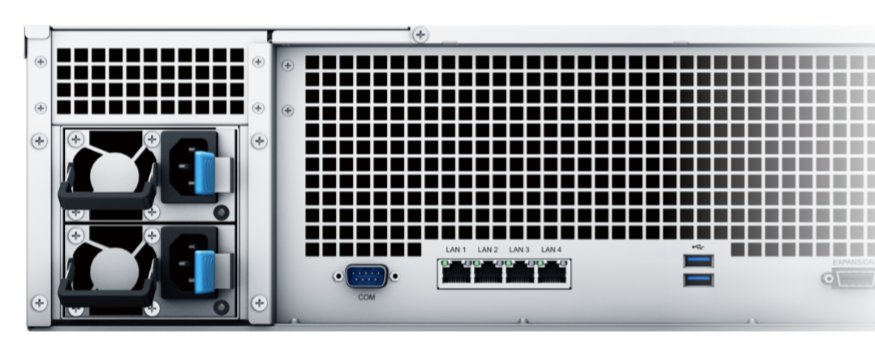

10/25GbE ready - Support for 10/25GbE NICs lets you boost maximum network throughput using Link Aggregation (bonding).

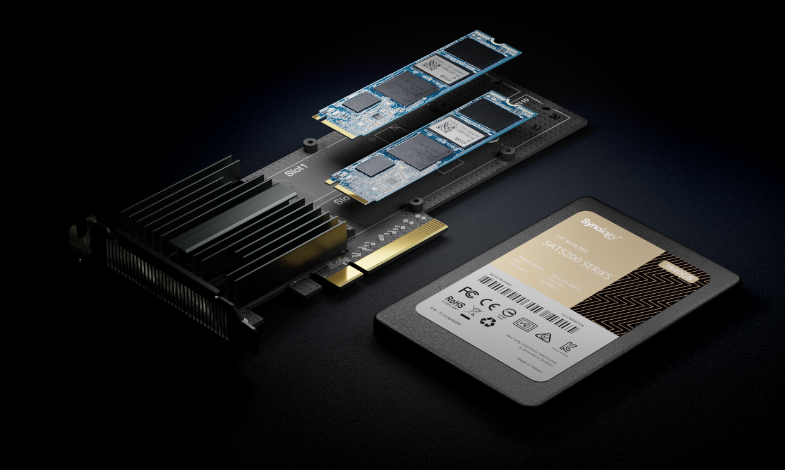

SSD cache*3 - Boost read/write IOPS over HDD-only arrays by up to 16 times or more with NVMe or SATA SSD Cache

Storage expansion - Expand to 24 drive bays with a RX1217(RP) expansion unit

Back up your NAS to other devices

Hyper Backup - Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication*4, and restore data flexibly with multi-versioning.

Snapshot Replication - Snapshot Replication enables flexible point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.

Consolidate backups to your NAS

Active Backup Suite - Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware and Hyper-V virtual machines with the Active Backup Suite.
Leverage built-in deduplication*4 technology to reduce backup sizes and multi-versioning to allow flexible restoration.

Serving remote workforces

Keep your remote workforce connected with powerful out-of-the-box solutions for collaboration, file sharing, and communication.

Storage for virtualization

DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.

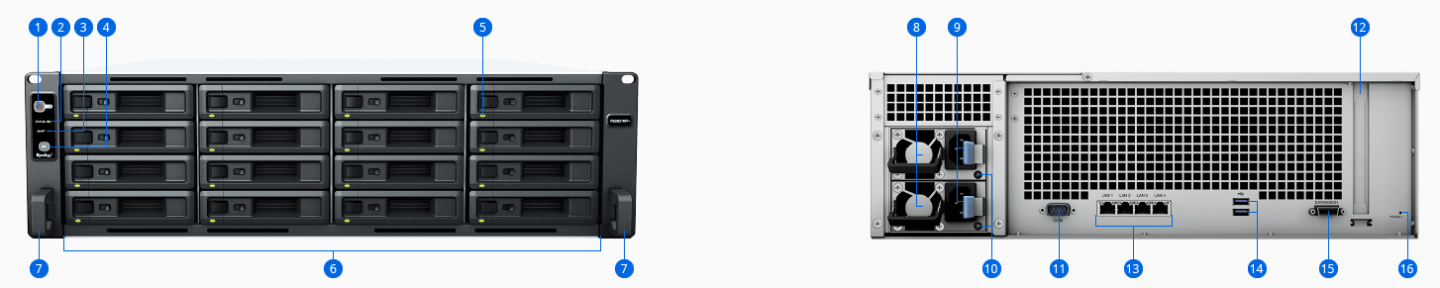

Ports & Connectivity

1. Power button and indicator
2. Status Indicator
3. Alert Indicator
4. Alert Off Button
5. Drive status indicator
6. Drive tray
7. Rail Kit Release Tab
8. PSU fan
9. Power Port
10. PSU indicator
11. Console port
12. PCIe expansion slot
13. 1GbE RJ-45 port
14. USB 3.2 Ports
15. Expansion port
16. Reset button

For more information: https://www.synology.com/en-global/products/RS2821RP+/
1. Performance testing conducted by Synology with 10GbE NICs installed. Actual results may vary depending on system configuration, testing methods, and other environmental variables. Check the performance page for specific details on the testing environment.
2. Network adapter cards, expansion units, other PCIe add-in cards, and storage drives are sold separately. Refer to the compatibility list for compatible devices.
3. SSD cache can be enabled by using compatible 2.5" SSDs in drive bays or without occupying drive bays by installing Synology SNV3400/3500 M.2 NVMe SSDs using M2D20 or E10M20-T1 adapter cards, sold separately.
4. Users have reported total data size reductions of more than 50% when backing up multiple systems with deduplication technology enabled.

CPU

CPU Model

AMD Ryzen V1500B

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Yes

Memory

System Memory

4 GB DDR4 ECC UDIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

16

Maximum Drive Bays with Expansion Unit

28 (RX1217/RX1217RP x 1)

Compatible Drive Type* (See all supported drives)

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

M
