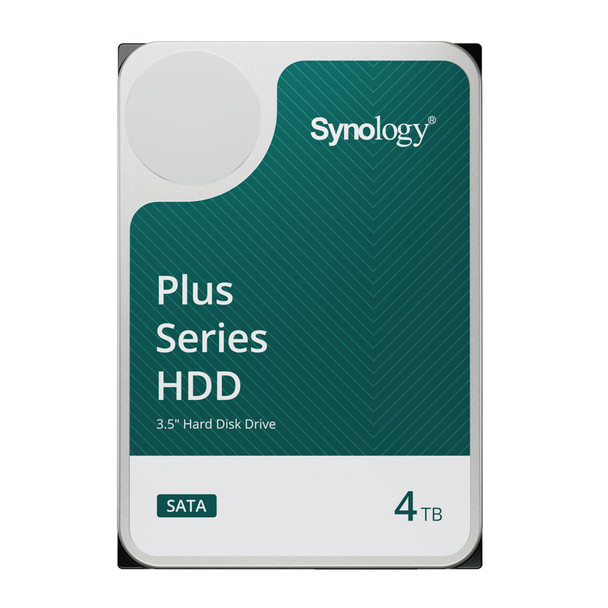

Synology HAT3300 4TB 3.5" Plus Series NAS HDD

Synology HAT3300 4TB 3.5" Plus Series NAS HDD

Reliable Drives for Home and Small Office Systems

Synology Plus Series SATA HDDs are designed to meet the reliability, endurance, and performance requirements of 24/7 storage in Synology small and medium-sized business storage systems. Stringent validation testing and NAS-class reliability ensure consistent performance in high-uptime and multi-user environments.

Highlights

Reliable Always-On Operation
Backed by up to a 1.2 million hours MTBF[1] and 180 TB/year workload rating

Tested for Maximum Reliability
Stringent validation and over 500,000 hours of testing ensure reliability in Synology systems

Seamless Firmware Updates
Firmware updates can be performed directly in Synology DSM

Reliable Recording Technology
Conventional magnetic recording (CMR) technology offers consistent performance

Engineered for endurance

Synology Plus Series HDDs are backed by up to a 1.2 million-hour mean time between failure (MTBF)[1] and a 180 TB per year workload rating, up to three times the limit of conventional desktop hard drives. Over 500,000 hours of compatibility and stress testing ensure smooth operation even under multi-user workloads.

Convenient firmware updates

Users are automatically notified when firmware updates become available for Synology Plus Series HDDs and can update drives seamlessly from DiskStation Manager (DSM) on their Synology storage system, eliminating the need for third-party tools and disk removal for firmware updates.

[1] Mean Time Between Failure (MTBF) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTBF.

Capacity

4 TB

Model number

HAT3300-4T

Form factor

3.5"


Interface

SATA


Sector size

512e


Drive design

Air

Performance


Rotational speed

5,400 rpm

Interface speed

6 Gb/s


Cache

256 MB

Maximum sustained data transfer speed (typical)

202 MB/s

Reliability


MTBF

1,000,000 hours

Workload rating

180 TB/year data write/read


Power Consumption


Supply voltage

12 V (± 10%) / 5 V (± 5%)

Idle power average

3.96 W

Average operating power

4.85 W

Environmental conditions


Temperature


Operating 0°C to 65°C (32°F to 149°F)
Non-operating -40°C to 70°C (-40°F to 158°F)


Shock


Operating 785 m/s2 (2 ms duration)
Non-operating 2,943 m/s2 (2 ms duration)

Vibration


Operating
10 Hz to 22 Hz: 2.45 m/s2,
Limited displacement
22 Hz to 350 Hz: 4.90 m/s2
350 Hz to 500 Hz: 2.45 m/s2

Non-operating
5 Hz to 22 Hz: 29.43 m/s²,
Limited displacement
22 Hz to 350 Hz: 29.43 m/s²
350 Hz to 500 Hz: 29.43 m/s²


Altitude


Operating -304.8 m to 3,048 m
Non-operating -304.8 m to 12,192 m


Relative humidity


Operating 5% to 90% R.H. (No condensation)
Non-operating 5% to 95% R.H. (No condensation)


Acoustics


Acoustics, idle (typical)

23 dB

Acoustics, seek (typical)

27 dB

Others


Size (HxWxD)

20.20 mm x 101.85mm x 147 mm


Weight

490 g

Certification

CE, RCM, BSMI, KC, UKCA, UL, TUV, RoHS
