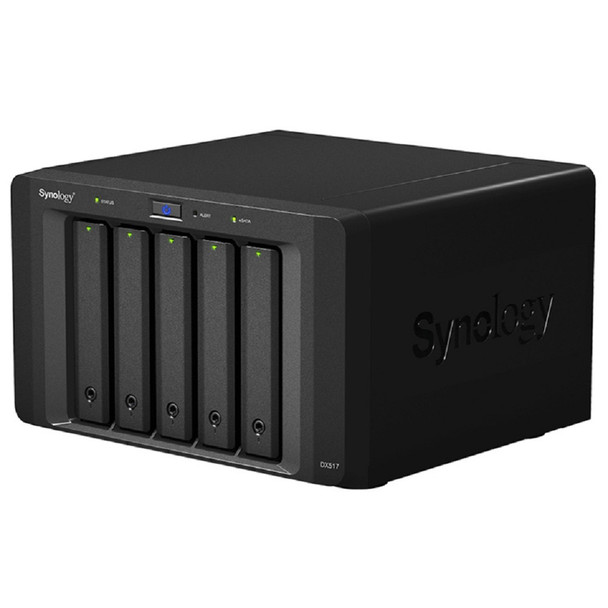

Synology DX517 5-Bay Expansion Unit 5x 3.5" bays Tower 1x eSATA - Includes Cable 3 Years Warranty

Synology DX517 5-Bay Expansion Unit 5x 3.5" bays Tower 1x eSATA - Includes Cable 3 Years Warranty

5-bay 3.5"/2.5" SATA expansion

Easily add 5 additional drive bays to Synology DiskStation1. Supporting both 2.5" and 3.5" SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.

Online volume expansion

Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.

Hot-swappable drive tray design

The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.

Dedicated local backup solution

Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.

Applied Models

Supports creating volumes across different units

23 series:DS1823xs+, DS923+, DS723+
22 series:DS1522+
21 series:DS1821+, DS1621xs+, DS1621+, DVA3221
20 series:DS1520+, DS920+, DS720+
19 series:DS1819+, DS1019+, DVA3219
18 series:DS1618+, DS918+, DS718+, NVR1218
17 series:DS1817+, DS1817, DS1517+, DS1517
16 series:DS916+, DS716+II, DS716+
15 series:DS1815+, DS1515+, DS1515

Supports creating volumes on a single unit only

18 series:DS218+
16 series:DS216+II, DS216+, NVR216
15 series:DS415+

Notes

For more information on the compatibility of each expansion unit, please refer to this article.
Please upgrade to DSM 6.2.1-23824-5 or later version before using it with 15 and 16 series models (excluding DS1515, DS716+, and DS716+II).
To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays

5

Compatible Drive Type* (See More on https://www.synology.com/en-global/compatibility?search_by=drives)

3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD

Hot Swappable Drive*

Yes

RAID Management through Synology DSM

Yes

Notes

Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

External Ports

eSATA Port

1

Appearance

Size (Height x Width x Depth)

157 mm x 248 mm x 233 mm

Weight

3.91 kg

Power

Power Recovery

Synchronized with the Synology DiskStation

Power Supply Unit / Adapter

200 W

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

9.9 W (Access)
2.4 W (HDD Hibernation)

British Thermal Unit

102.02 BTU/hr (Access)
8.19 BTU/hr (HDD Hibernation)

Notes

Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Temperature

Operating Temperature

5°C to 40°C (40°F to 104°F)

Storage Temperature

-10°C to 70°C (15°F to 155°F)

Relative Humidity

5% to 95% RH

Others

System Fan

80 mm x 80 mm x 2 pcs

Easy Replacement System Fan

Yes

Noise Level*

21.5 dB(A)

Notes

Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

Certification

FCC
CE
BSMI

Environment & Packaging

Environment

RoHS Compliant

Packaging Content

Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Expansion Cable: eSATA X 1
Quick Installation Guide X 1
