Description

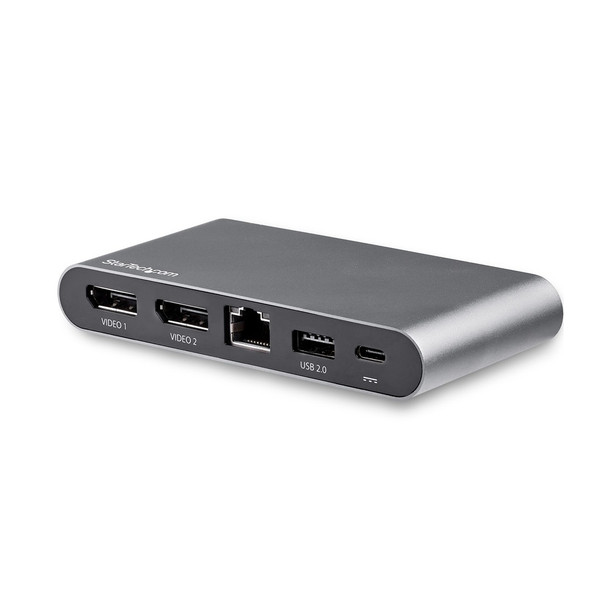

This USB-C multiport adapter turns your Windows® laptop into a portable workstation. The USB-C to dual DisplayPort adapter connects your USB-C laptop to two DisplayPort monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.

Laptop Charging with PD 3.0

Through 100W?Power Delivery?3.0,?the?USB Type-C to DisplayPort adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter.?PD?3.0 features Fast Role Swap to prevent USB data disruption when?you?unplug?the power adapter to?switch?power sources (USB-C?power adapter to?bus power).?

Connect to Dual DP Monitors?with Flexible Resolution Options

The USB-C video adapter extends your laptop screen to?dual DisplayPort displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.

The maximum Ethernet speed is 1000 Mbps in USB 3.0 mode, and 100 Mbps in USB 2.0 mode.

Connect?USB?Devices?

The?USB-C hub with DisplayPort gives you two?USB-A ports (one USB 3.0/USB 2.0, and one USB 2.0).

Reliable?Network?Connectivity?

The GbE port ensures reliable network access.?A 1 m USB-C cable is included for set-up flexibility.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.?

Applications

- Boardroom presentations, with two display outputs

- Create a two-monitor workstation, cost-effectively

Power
Power Source	Bus Powered and Host USB-C Power Adapter
Prominence
Description CDW 75 - 1st Line	StarTech.com Dual DP Monitor USB C Docking Station for Windows® Laptops
Software
OS Compatibility	Windows® 7, 8, 8.1, 10
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
	For a dual-monitor configuration the host laptop must support MST.
	In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps.
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	The multiport adapter provides limited Android support (no MST support).
	The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power).
	Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
	Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
	Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
What's in the Box
Included in Package	Quick-Start Guide
	USB-C Cable
Power
Power Delivery	100W
Power Consumption (In Watts)	15W
Laptop Charging via Power Delivery	85W
Physical Characteristics
Weight of Product	200 g [7.1 oz]
Product Width	60 mm [2.4 in]
Product Length	12 cm [4.7 in]
Product Height	1.9 cm [0.7 in]
Enclosure Type	Plastic
Color	Black
Performance
UASP Support	Yes
Type and Rate	USB 3.0 - 5 Gbit/s
Maximum Digital Resolutions	Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Special Notes / Requirements
System and Cable Requirements	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Hardware
Chipset ID	VIA/VLI - VL102 VIA/VLI - VL170 VIA/VLI - VL817 MegaChips - STDP4320 RealTek - RTL8153
Displays Supported	2
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Package Height	42 mm [1.7 in]
Package Length	20.8 cm [8.2 in]
Package Width	14.5 cm [5.7 in]
Shipping (Package) Weight	220 g [7.8 oz]
Performance
Auto MDIX	Yes
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
What's in the Box
Included in Package	Multiport Adapter
Connector(s)
Connector Type(s)	DisplayPort (20 pin) Female
	RJ-45 Female
	USB Type-A (4 pin) USB 2.0 Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Male
	USB-C (24 pin) USB Power Delivery only Female
Environmental
Humidity	0~95% RH (Non-condensing)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Hardware
4K Support	Yes
Bus Type	USB-C
