Description

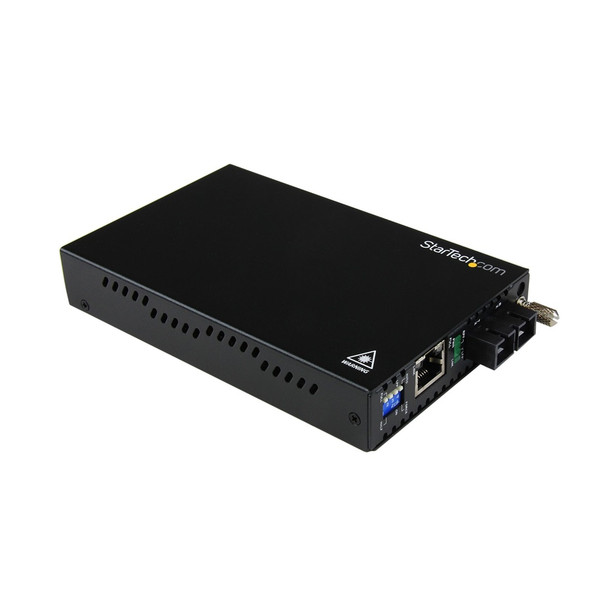

The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Performance | |
| Maximum Data Transfer Rate | 2000 Mbps (full duplex mode) |
| MTBF | 65,000 Hours |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 25 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 562 g [19.8 oz] |
| Performance | |
| Max Transfer Distance | 550 m (1804 ft) |
| Fiber Type | Multi Mode |
| Fiber Operating Mode | Half/Full-Duplex |
| Auto MDIX | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [1.9 lb] |
| Hardware | |
| WDM | No |
| PoE | No |
| Environmental | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 10~90% RH |
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| Fiber Optic SC Duplex Female | |
| Physical Characteristics | |
| Product Width | 90 mm [3.5 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36A |
| Input Voltage | 115V-230V AC |
| Output Current | 1.6 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 4 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Fiber Media Converter |
| Grounding Screw | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
