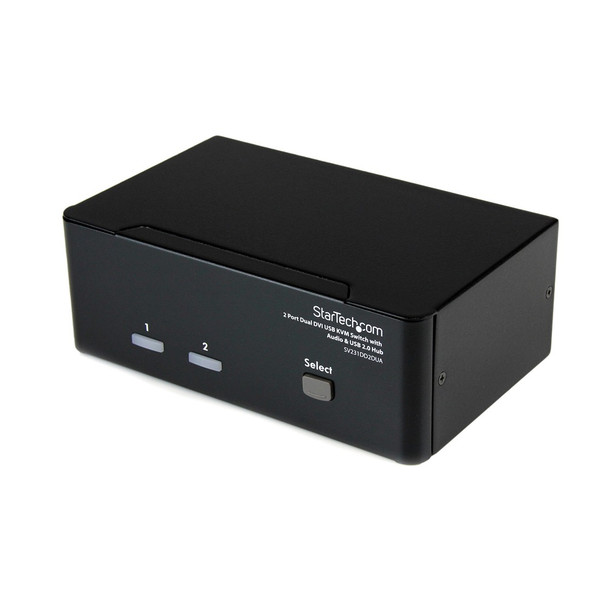

StarTech 2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub

The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.

An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.

This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.

Applications

Dual system control for single user workstations with dual head video cards, increasing user productivity in the officeControl two dual display multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications, and multiple screensIntegrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals

Audio
Yes

Cables Included
No

Daisy-Chain
No

KVM Ports
2

Number of Monitors Supported
2

PC Interface
USB

PC Video Type
DVI

Rack-Mountable
No

DVI Support
Yes - Single Link

Hot-Key Selection
Yes

IP Control
No

Maximum Digital Resolutions
1920 x 1200

Maximum Number of Users
1

On-Screen Display
No

Port Selection
Support Push Button and Hotkeys

Console Interface(s)
2 - 3.5 mm Mini-Jack (3 Position) Female
2 - DVI-I (29 pin) Female
4 - USB Type-A (4 pin) USB 2.0 Female

Host Connectors
2 - USB B (4 pin) Female
4 - 3.5 mm Mini-Jack (3 Position) Female
4 - DVI-I (29 pin) Female

Center Tip Polarity
Positive

Input Current
0.8A

Input Voltage
110V-240V AC

Output Current
1.5A

Output Voltage
12 DC

Plug Type
M

Power Consumption (In Watts)
18

Power Source
AC Adapter Included

Humidity
90% RH

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Color
Black

Enclosure Type
Steel

Product Depth
3.9 in [100 mm]

Product Height
2.2 in [57 mm]

Product Length
6.4 in [163 mm]

Product Weight
26.5 oz [750 g]
