QNAP TVS-675-8G Business 6-Bay Desktop NAS 8-Core Upto 2.5GHz 8GB DDR4

QNAP TVS-675-8G Business 6-Bay Desktop NAS 8-Core Upto 2.5GHz 8GB DDR4

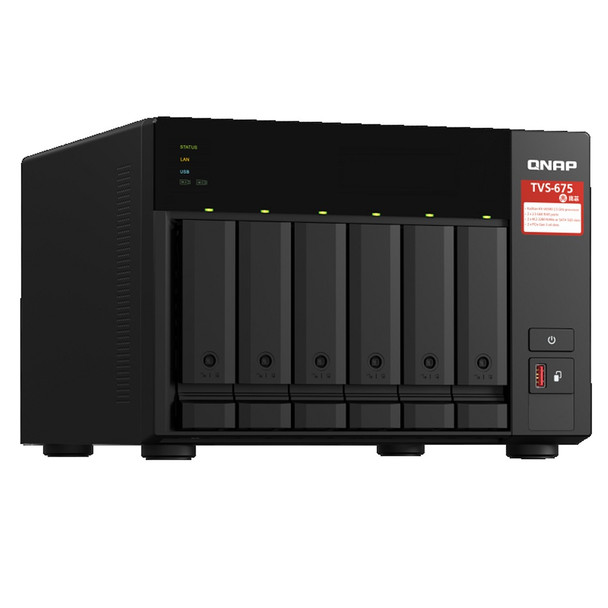

QNAP TVS-675-8G 6 Bay Diskless NAS KX-U6580 8 Core 2.5GHz 8GB

Powered by the x86 architecture Zhaoxin KaiXian KX-U6580 8-core processor, the TVS-675 provides businesses with a modern 2.5GbE NAS solution to tackle everyday tasks like file backup/restore, and to boost team collaboration with higher productivity. Besides hardware advantages with built-in M.2 SSD slots for cache acceleration and PCIe expansion, the TVS-675 supports abundant business and media applications (including snapshot protection, virtual machines, cloud storage gateways, 4K HDMI display, and real-time transcoding) alongside expandable storage capacity and install-on-demand apps, making it a cost-effective and reliable data storage and media NAS.

CPU

ZhaoXin KX-U6580 8-core 2.5GHz processor

CPU Architecture

64-bit x86

Graphic Processors

ZhaoXin C-960 Graphics

Floating Point Unit

Yes

Encryption Engine

Yes (AES-NI)

Hardware-accelerated Transcoding

Yes

System Memory

8 GB SODIMM DDR4 (1 x 8 GB)

Maximum Memory

64GB (2 x 32 GB)

Memory Slot

2 x SO-DIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

6 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility 3.5-inch bays

3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

Yes

M.2 Slot

2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots

SSD Cache Acceleration Support

Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2

5 Gigabit Ethernet Port (5G/2.5G/1G/100M)

Optional via an adapter

10 Gigabit Ethernet Port

Optional via an adapter

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

PCIe Slot

2

Slot 1

PCIe Gen 3 x4

Slot 2

PCIe Gen 3 x4

USB 3.2 Gen 1 port

2

USB 3.2 Gen 2 (10Gbps) Port

2 x Type-A

HDMI Output

1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)

Form Factor

Tower

LED Indicators

HDD 1-6, Status, LAN, USB, M.2 SSD 1-2

Buttons

Power, Reset, USB Copy

Dimensions (HxWxD)

188.2 × 263.9 × 280.8 mm

Weight (Net)

6.2 kg

Weight (Gross)

7.67 kg


Operating temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)


Power Supply Unit

250W, 100-240V AC, 50/60Hz, 3.5A


Power Consumption

HDD

Sleep Mode

41.897 W

Power Consumption
Operating Mode, Typical


60.794 W

Fan

3 x 80mm, 12VDC


Sound Level

20.2 db(A)

System Warning

Buzzer

Kensington Security Slot

Yes

Max. Number of
Concurrent Connections
(CIFS) - with Max. Memory


2000
