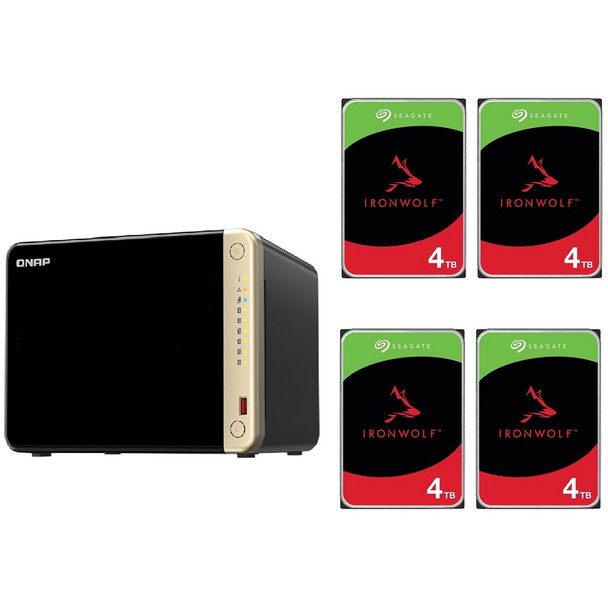

QNAP TS-664 6 Bay 8GB Desktop NAS With 4x 4TB NAS HDD Bundle

QNAP TS-664 6 Bay 8GB Desktop NAS With 4x 4TB NAS HDD Bundle

QNAP TS-664 6 Bay 8GB Desktop NAS

Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

2.5GbE connectivity

Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

M.2 SSD caching

Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

PCIe expandability

Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

License-free virtualized environment

Host multiple containerized apps to run a wide range of applications and services.

Drives Auto-Tiering

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

4K HDMI

4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.

IronWolf 4TB NAS Internal HDD

Seagate ST4000VN006, 5,400RPM, SATA III 6Gb/s, 3.5in, 4TB capacity, AgileArray, 256MB cache, Tough, ready, and scalable. IronWolf drives are NAS-optimized for 24x7 in NAS enclosures. Tuned with AgileArray and multi-user technology, IronWolf allows you to do more with your NAS.

IronWolf provides a workload rate of 180 TB/year with scalable 24x7 performance that can handle multi-bay NAS environments, as well as capacities up to 4 TB. It fits applications like 1- to 8-bay network attached storage (NAS).

Drive health and data recovery

When integrated into compatible NAS systems, these drives provide overall system reliability increases due to IronWolf Health Management (IHM).

QNAP TS-664 6 Bay 8GB Desktop NAS

CPU

Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics

System Memory

8 GB SODIMM DDR4 (1 x 8 GB)

Flash Memory

4GB (Dual boot OS protection)

Drive Bay

6 x 3.5-inch SATA 6Gb/s

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

Yes

M.2 Slot

2 x M.2 2280 PCIe Gen 3 x1

HDMI Output

1, HDMI 2.0

Form Factor

Tower

LED Indicators

Power/Status, LAN, USB, HDD1-6

Buttons

Power, USB copy, Reset

Dimensions (HxWxD)

168 × 235 × 226 mm

Weight (Net)

2.9 kg

Weight (Gross)

4.56 kg

Operating Temperature

0 ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

120W adapter, 100-240V

Power Consumption: HDD Sleep Mode

23.22 W

Power Consumption: Operating Mode, Typical

44.02 W

Fan

2 x 90mm, 12VDC

System Warning

Buzzer

IronWolf 4TB NAS Internal HDD

Capacity

4TB

Standard Model Number

ST4000VN006

Interface SATA

6Gb/s

Drive Bays Supported

1 -8 Bays

Recording Technology

CMR

Drive Design (Air or Helium)

Air

Workload Rate Limit (WRL)

180

Rotational Vibration (RV) Sensor

Yes

Dual-Plance Balance

Yes

Error Recovery Control

Yes

Max. Sustained Transfer Rate OD (MB/s)

202MB/s

Spindle Speed (RPM)

5,400

Cache (MB)

256
