QNAP QSW-1105-5T 5 Port 5x2.5Gbps Auto Negotiation (2.5G/1G/100M), Umanaged Switch

QNAP QSW-1105-5T 5 Port 5x2.5Gbps Auto Negotiation (2.5G/1G/100M), Umanaged Switch

With five 2.5GbE ports, the QNAP QSW-1105-5T switch instantly upgrades your network to take advantage of 2.5GbE-enabled devices and NAS without requiring any new network cables. Featuring a near-silent fanless design and plug-and-play set up, the QSW-1105-5T provides network loop detection and blocking functions, making it easy for you to create an affordable high-speed network environment for your home or business.

2.5GbE connectivity

Immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.

Plug and play

No complex settings are required, and auto-negotiation ensures optimal performance.

Loop detection

Automatic loop detection and blocking to ensure continuous network operation.

Silent operation

The unique fanless design with ventilated construction provides near-silent operation.

Up to 2.5 times faster

The QSW-1105-5T has five 2.5GbE ports that support existing Ethernet devices and are ready for next-generation 2.5GbE devices. Whether you are upgrading your network for business or personal use, the QSW-1105-5T provides a solid foundation for enabling faster and smoother productivity and entertainment.

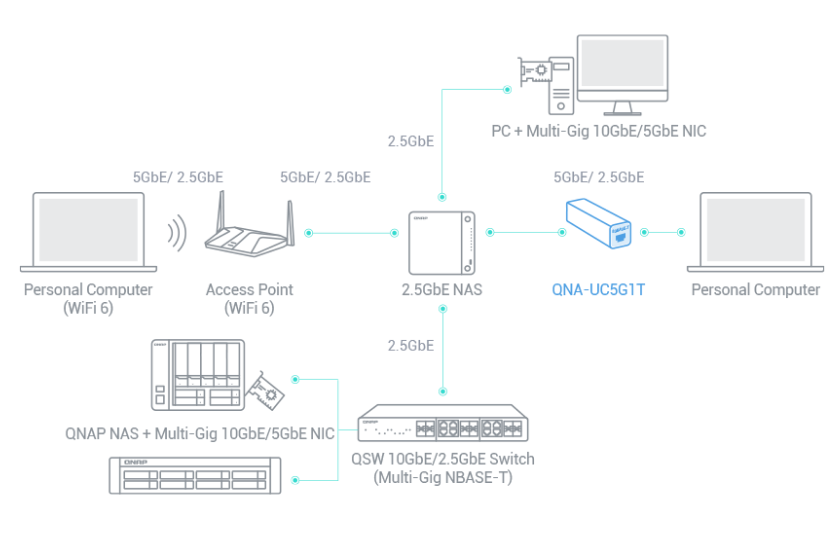

Future-proof your network environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

Affordable network upgrade

Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. You can even use your existing CAT 5e cables to immediately take advantage of higher transfer speeds.

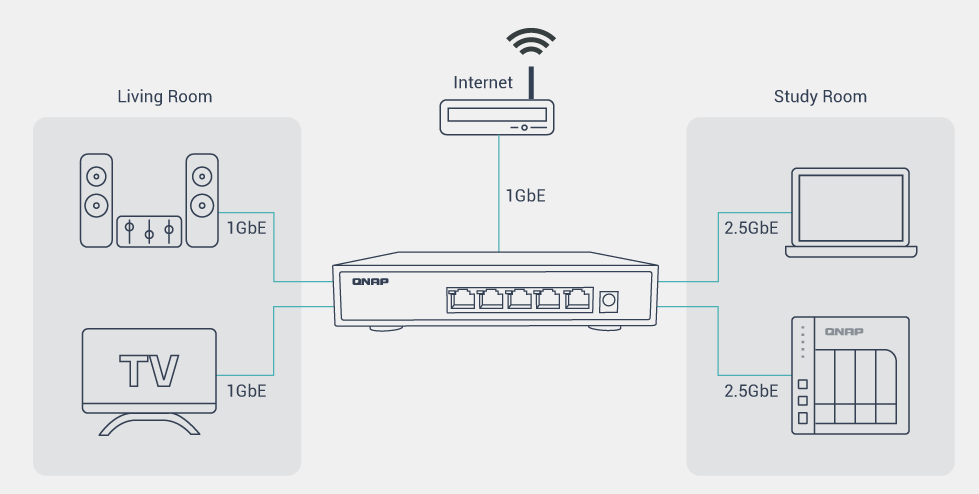

Instantly build a plug-and-play high-speed network

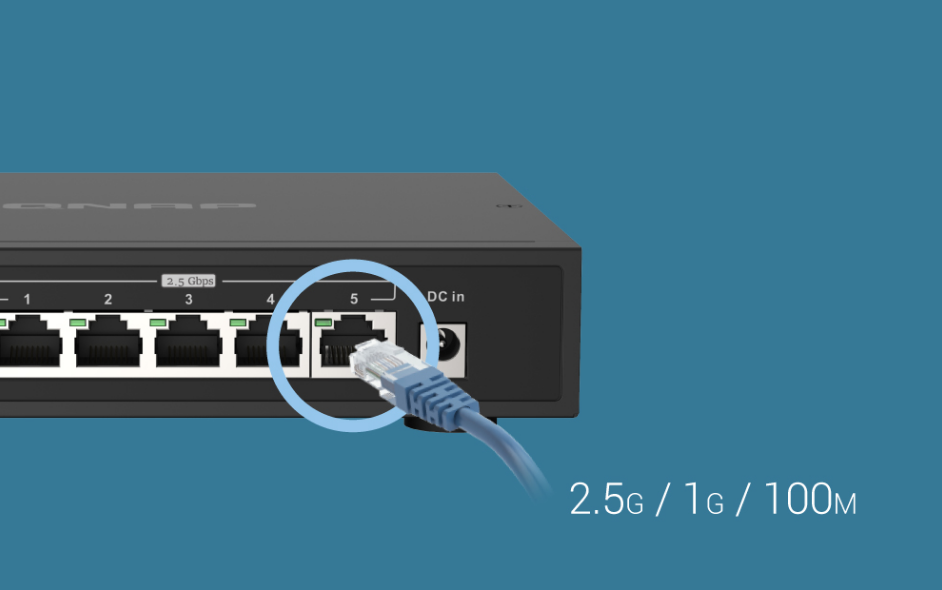

No complex settings are required to use the QSW-1105-5T - simply connect your devices and it's ready to use. The QSW-1105-5T supports auto-negotiation that optimizes transfer speeds and performance for each connected device.

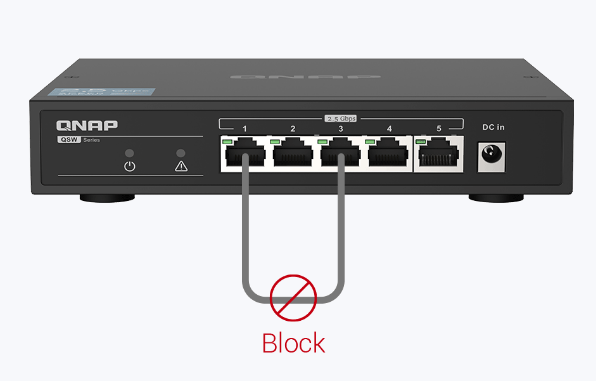

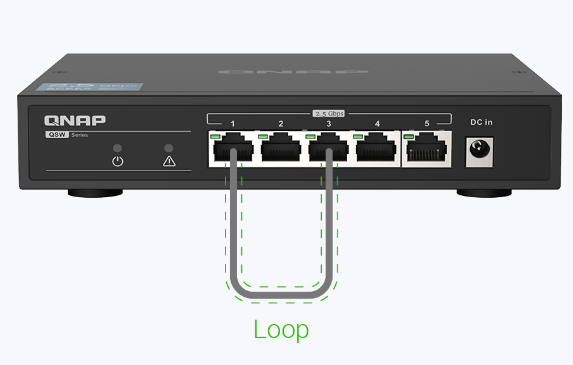

Loop detection and blocking

The QSW-1105-5T features network loop detection. If a network loop is detected, the QSW-1105-5T automatically locks the looped ports to ensure the network environment quickly resumes normal operation.

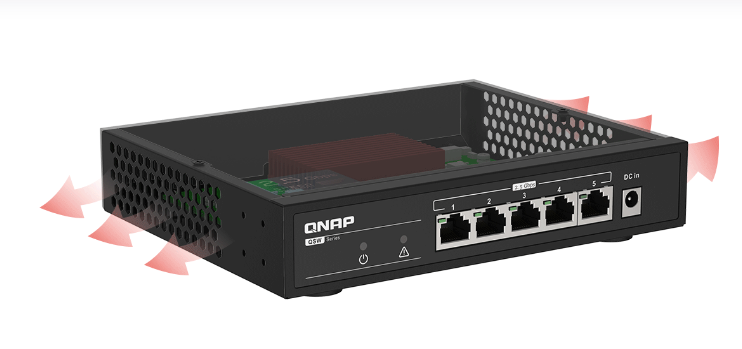

Cool and quiet operation

The QSW-1105-5T features a fanless design for near-silent operation. The unique ventilated construction assists in cooling while maintaining high performance.

Management Type

Unmanaged

Number of Ports

5

2.5GbE (RJ45)

5

Power Supply Description

Adapter

Max. Power Consumption

12 W

Input Power Type

DC

Input Voltage Range

12V

MAC Address Table

16K

Total Non-Blocking Throughput

12.5Gbps

Switching Capacity

25Gbps

Fan

Fanless

Supported Standards

IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3x Full-Duplex Flow Control

Form Factor

Desktop

LED Indicators

Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status

Dimensions (HxWxD)

34 x 180 x 145 mm

Weight (Net)

0.577 kg

Operating Temperature

0°C to 40°C (32°F to 104°F)

Relative Humidity

10% to 90% (non-condensing)

Electromagnetic Compliance

Class B

Jumbo Frames

9K
