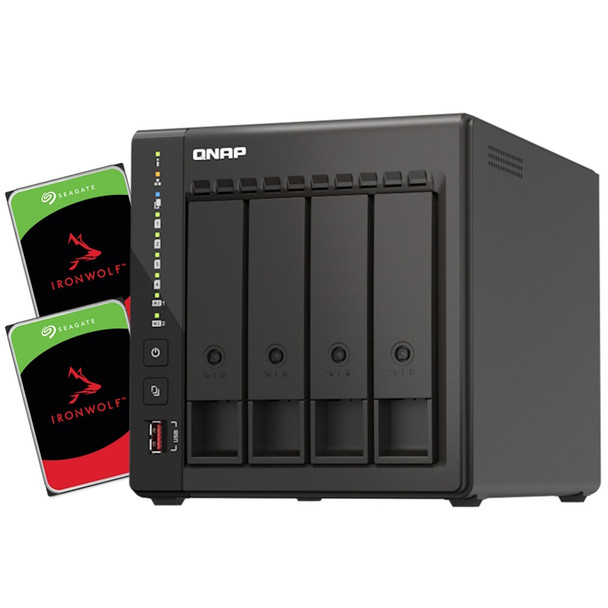

QNAP 453E 4-Bay NAS with 2X 10TB NAS HDD Bundle

QNAP 453E 4-Bay NAS with 2X 10TB NAS HDD Bundle

QNAP TS-453E-8G Work Group/ SOHO/ Home 4-Bay NAS Server

The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.

Dual 2.5GbE ports

2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.

Dual M.2 2280 PCIe slots

Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.

8GB RAM onboard

System performance and multitasking is optimized with 8GB RAM.

Long-term model

The TS-453E will be available and supported by QNAP for an extended period, up to 2029.

Dual HDMI output

The dual-screen extension can be used for surveillance or 4K high-resolution video playback.

Expand storage capacity

Supports USB expansion enclosures

Seagate IronWolf 10TB NAS Internal HDD

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 10TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (CMR) from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 10TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, air drive design, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.

Optimized for NAS with AgileArray

AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management

IronWolf Health Management

IronWolf Health Management focuses on prevention, intervention, and recovery

Reduced Lag Times

Improved performance means reduced lag times or downtime for users during high traffic time for the NAS

Rotational Vibration (RV) Sensors

IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures

Multi-User Environments

IronWolf provides a workload rate of 180TB per year, which means that multiple users can upload and download data to the NAS server, knowing that IronWolf can handle the workload, whether you are a creative professional or small business

Designed for Always-On, Always-Accessible 24/7 Performance

Access data on your NAS virtually any time, whether remotely or on site

Cache Memory

IronWolf provides 256MB of cache memory, allowing your NAS to serve data faster

1.0 Million Hours MTBF | Limited 3-Year Warranty

This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs

Designed for 24x7 Performance

Access your data on your NAS at virtually any time, whether remotely or on site

Best-Fit Applications

1-8 bay business network attached storage (NAS)

QNAP TS-453E

CPU

Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics

Floating Point Unit

Yes

Encryption Engine

(AES-NI)

Hardware-accelerated Transcoding

yes

System Memory

8 GB on board (non-expandable)

Maximum Memory

8GB

Flash Memory

4GB (Dual boot OS protection)

Drive Bay

4 x 3.5-inch SATA 6Gb/s

Drive Compatibility

3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

USB 2.0 port

2

USB 3.2 Gen 2 (10Gbps) Port

2 x Type-A

HDMI Output

2 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )

Form Factor

Tower

LED Indicators

Power/Status, LAN, USB, HDD1-4
Buttons Power, Reset, USB Auto Copy

Dimensions (HxWxD)

177 × 180 × 235 mm

Weight (Net)

3 kg

Weight (Gross)

4.3 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

90W adapter, 100-240V

Power Consumption: HDD Sleep Mode

15.78 W

Power Consumption: Operating Mode, Typical

33.88 W

Fan

1 x 120mm, 12VDC

System Warning

Buzzer

Seagate IronWolf 10TB NAS

Formatted (512 bytes/sector)

10TB

Heads
