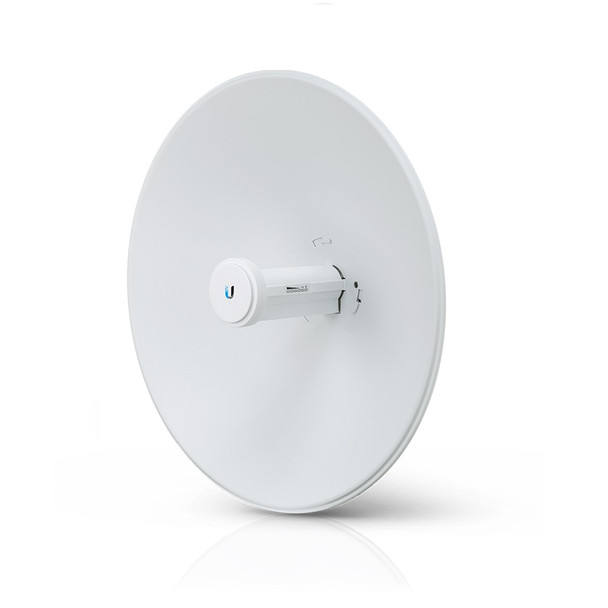

Ubiquiti PBE-5AC-GEN2 PowerBeam High-Performance airMAX AC Bridge

Ubiquiti PBE-5AC-GEN2 PowerBeam airMAX AC Bridge

High-Performance airMAX® ac Bridge

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.



Management Wi-Fi Radio

The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection

Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.


Integrated Radio Design

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.


Incredible Antenna "Beam" Performance

The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC's excellent beam directivity provides the best performance in high-noise environments.


Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Dimensions
420 x 420 x 230 mm (16.54 x 16.54 x 9.06")

Weight
2.22 kg (4.89 lbs)

Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption
8.5W

Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range
20 to 26VDC

Gain
25 dBi

Networking Interface
(1) 10/100/1000 Ethernet Port

Processor Specs
MIPS 74Kc

Memory
64 MB

LEDs
Power, Ethernet, (4) Signal Strength

Channel Sizes

PtP Mode
10/20/30/40/50/60/80 MHz
PtMP Mode
10/20/30/40 MHz

Enclosure Characteristics

Antenna Feed
Dish Reflector
Outdoor UV Stabilized Plastic
Powder-Coated SPCC

Mounting
Pole-Mounting Kit (Included)

Wind Loading
380 N @ 200 km/h (85.4 lbf @ 125 mph)

Wind Survivability
200 km/h (125 mph)

ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature
-40 to 70° C (-40 to 158° F)

Operating Humidity
5 to 95% Noncondensing

RoHS Compliance
Yes

Salt Fog Test IEC
68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC
68-2-6

Temperature Shock Test
IEC 68-2-14

UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Certifications
CE, FCC, IC
