Description

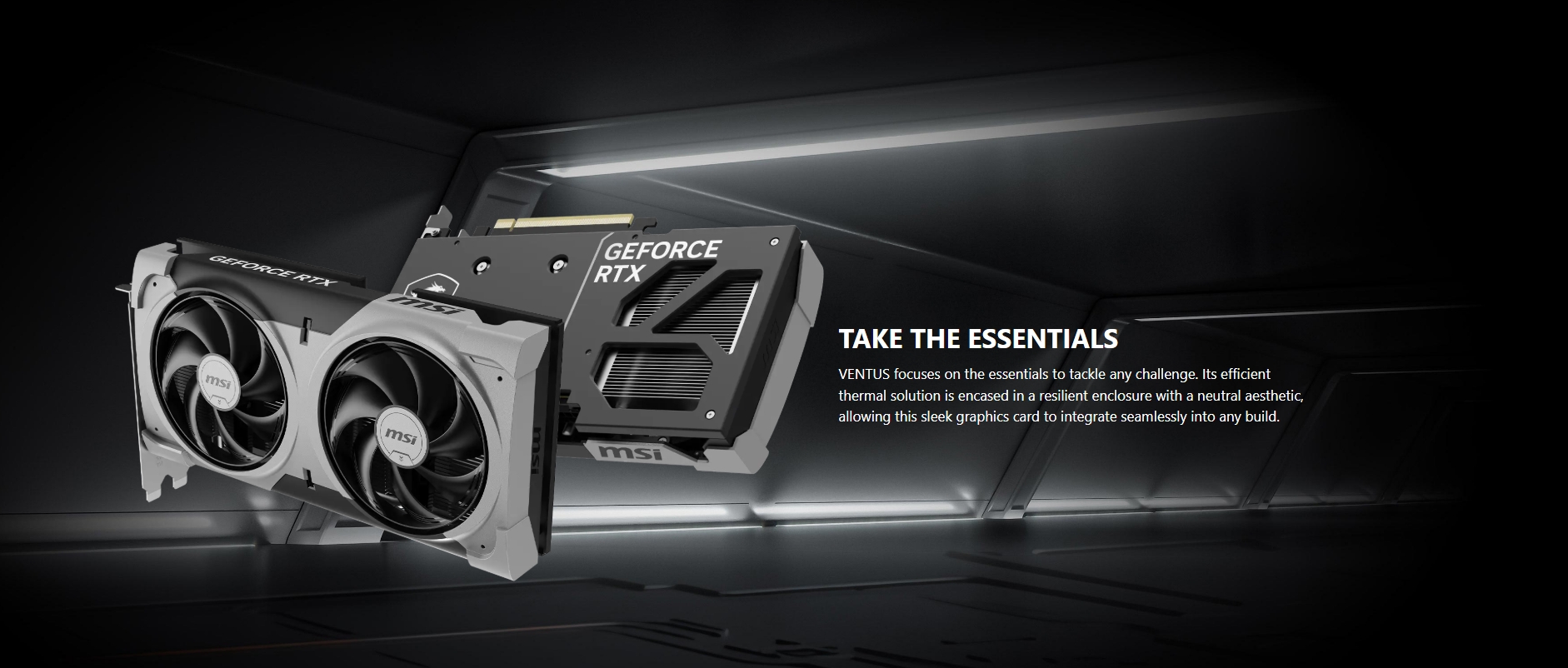

MSI GeForce RTX 5060 Ti 8G VENTUS 2X PLUS GDDR7 Video Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
- Extreme Performance: 2617 MHz (MSI Center)
- Boost: 2602 MHz
- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Dual Fan:
Two fans and a huge heatsink ensure a cool and quiet experience for you.
STORMFORCE FAN:
Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Reinforcing Backplate:
The reinforcing backplate features a flow-through design that provides additional ventilation.
Zero Frozr:
The fans completely stop when temperatures are relatively low, eliminating all noise.
DrMOS:
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse:
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
MSI Center:
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner:
Take full control with the most recognized and widely used graphics card overclocking software in the world.


| Power Description | |
| Power Supply Wattage | 600 W |
| Power Connector | 1x 8-pin |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | GDDR7 |
| Bus Width | 128 bit |
| Maximum Memory Bandwidth | 28 GB/s |
| Interfaces/Ports | |
| Host Interface | PCI Express 5.0 x16 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 573 g |
| Form Factor | Internal |
| Length | 227 mm |
| Cooler Type | Fan Cooler |
| Height | 41 mm |
| Width | 127 mm |
| Processor & Chipset | |
| Chipset Manufacturer | NVIDIA |
| Chipset Model | RTX 5060 Ti |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| GPU Boost Clock | 2602 MHz |
| Game Clock | 2617 MHz |
| Technical Information | |
| API Supported | DirectX 12 Ultimate,OpenGL 4.6 |
| HDCP Supported | Yes |
| Number of Monitors Supported | 4 |
| Frame Lock/Genlock | Yes |
| Frame Lock/Genlock Type | G-sync |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 4608 |
| General Information | |
| Product Type | Graphic Card |
| Packaged Quantity | 1 |
| Manufacturer | Micro-Star INT'L CO., LTD. |
| Product Model | G506T-8V2CP |
| Product Name | GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS |
| Product Line | VENTUS 2X |
| Brand Name | MSI |
