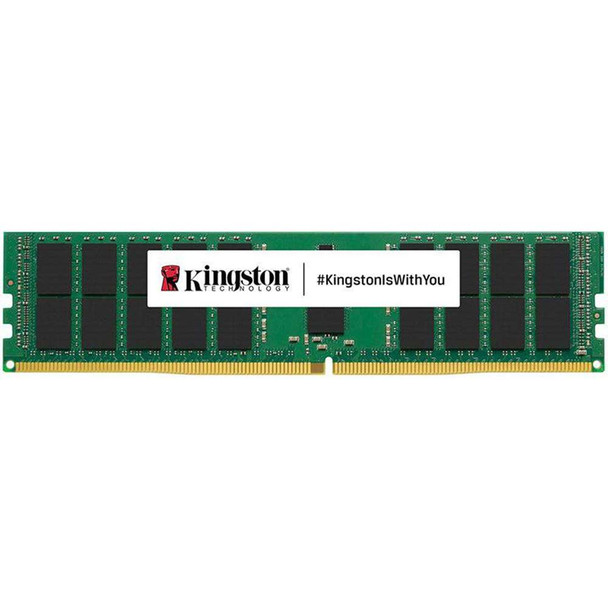

Kingston 32GB DDR4 3200MT/s ECC Registered RAM DIMM CL22 2RX4 1.2V Registered w/Parity KSM32RD4/32HDR

Kingston 32GB DDR4 3200MT/s ECC Registered RAM DIMM CL22 2RX4 1.2V Registered w/Parity KSM32RD4/32HDR

Kingston's KSM32RD4/32HDR is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx4, ECC, memory module, based on thirty-six 2G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V • VDDQ = 1.2V • VPP = 2.5V • VDDSPD = 2.41V to 2.75V
• Functionality and operations comply with the DDR4 SDRAM datasheet • 16 internal banks
• Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
• Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
• Bi-Directional Differential Data Strobe • 8 bit pre-fetch • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Supports ECC error correction and detection • On-Die Termination (ODT) • Temperature sensor with integrated SPD
• This product is in compliance with the RoHS directive. • Per DRAM Addressability is supported
• Internal Vref DQ level generation is available • Write CRC is supported at all speed grades
• CA parity (Command/Address Parity) mode is supported
