Description
Emdoor EM-X14M 14" U7-155H 32GB RAM 512GB Storage Win11Pro Rugged Laptop
CPU: ® Intel Core™ Ultra 7 processor 155H with 16 cores and 22 threads
GPU: iGfx/dGfx (Intel Xe LPG Graphics)
Operating system: Windows 11 Pro
Resolution: 1920*1080
Screen size: 14 inches
Basic parameters | |

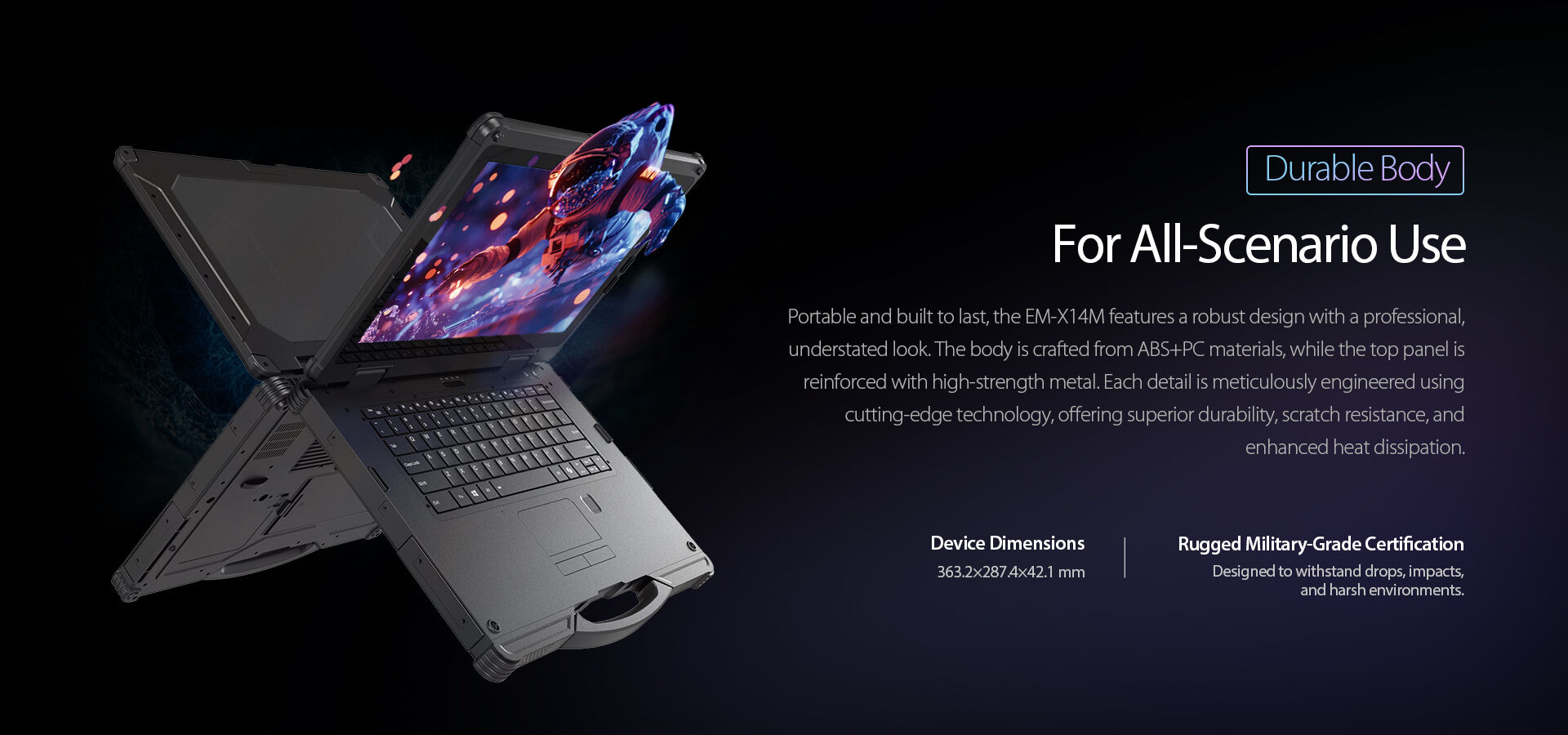

| Dimension | 363.2 x 287.4 x 42.1mm |
| Weight | 2.97kg |
| Material | ABS+PC |
| Device Color | Black |
| LCD | 14 inch 16:9, 1920×1080, 1000 nits |
| Camera | Front 5.0MP |

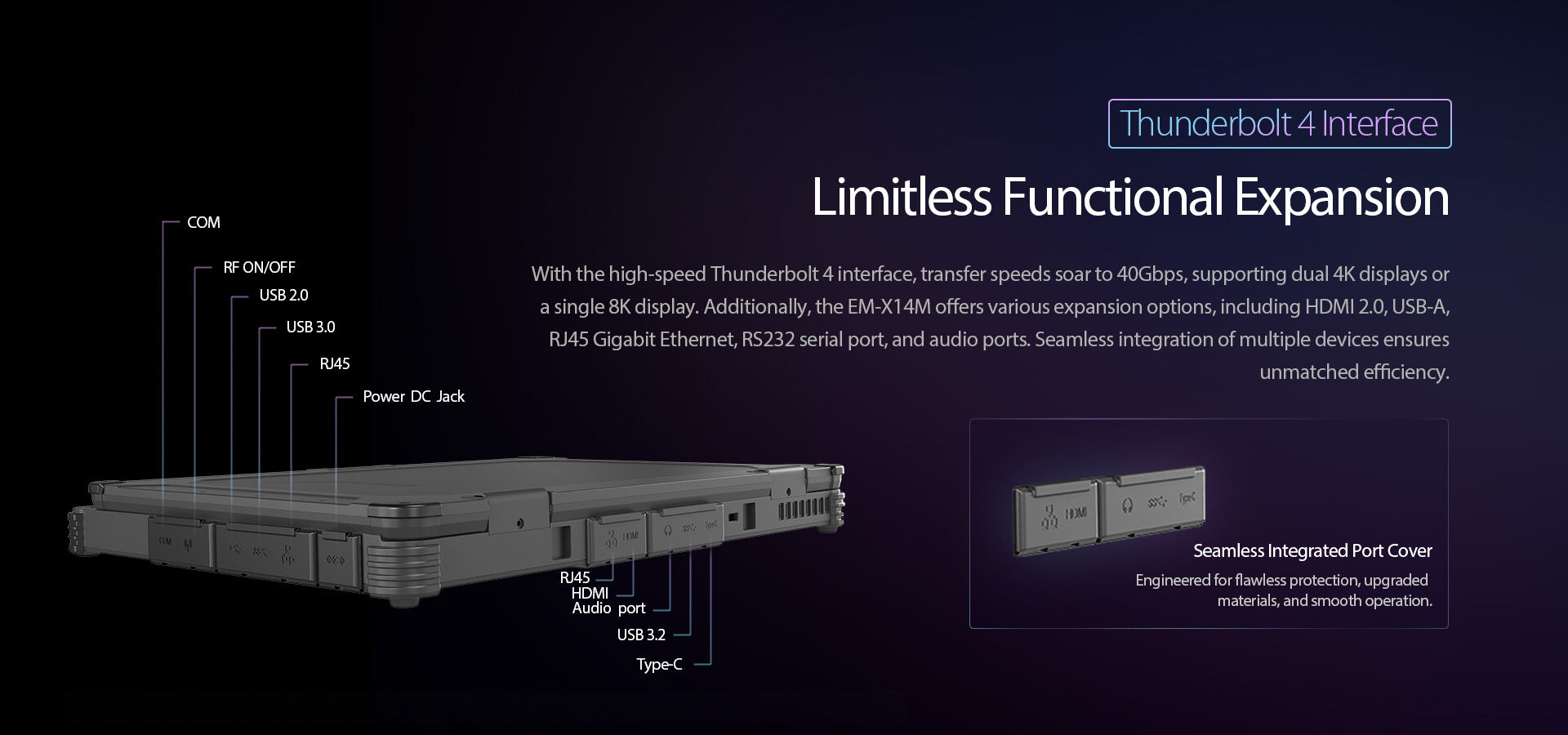

| I/O | USB3.2 *1, USB3.0 *1，USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45*1 10M/100M/1000M self-adaptive， RJ45*1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2 E-KEY interface *1 for custom modules Optional: 12PIN Pogo Pin (USB & Charging) *1 |
| Power Adapter | AC100~240V, 19V/3.78A 71.82W output ANZ Standard |
Battery | |
| Battery | Built-in - 1300mah/11.1V / Built-in Polymer Lithium-ion Battery, Non-removable / 1.5 hours Hot-swappable - 4850mah/11.55V / Removable Polymer Lithium-ion Battery, Hot-swappable / 8 hours |
Performance parameter | |
| CPU | Intel® Core™ Ultra 7 processor 155H |
| GPU | iGfx/dGfx (Intel Xe LPG Graphics) |
| Operating system | Windows 11 Pro |
| Memory | 32GB DDR5 SO-DIMM |
| Storage capacity | 512GB PCIe SSD |
Network connections | |
| WIFI | Intel® Wi-Fi 6 /Wi-Fi 6E (802.11 ax) |
| Bluetooth | Bluetooth® 5.1 |
| GNSS | GPS module |
Reliability | |
| Working Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.2m drop |
Additional Information
Screen Size: |
14 Inches |
CPU: |
Intel Ultra 7 |
Memory Size: |
32GB |
GPU Model: |
Integrated Graphics |
