Emdoor EM-I14M 14" U7-155H 32GB 256GB Win11Pro Rugged Tablet
Key Specifications/ Special Features:
All-new Intel Core Ultra processor
Expanded storage capabilities
Thunderbolt 4 versatile interface
56Wh+14.4Wh dual battery
IP65&MIL-STD-810H certified
| Tech Spec | |
| Product Form | 14-inch Rugged Tablet |
| Material | PC+10%GF |
| Dimensions | 366.2mmx246.9mmx24.8mm |
| Weight | TBD |
| Product Color | Black |
| CPU | Intel® Core™ Ultra 7 processor 155H processor with 16 cores and 22 threads, up to 4.80 GHz, integrated 24 MB SmartCache, TDP 28W |
| GPU | iGfx/dGfx (Intel Xe LPG Graphics) |
| Memory | RAM 32GB DDR5 (4800MHz) ROM 256GB SSD |
| Operating System | Windows 11 PRO 64bit Default Language: English |
| Display | Type: LCD Size: 14-inch 16:9 Resolution: 1920*1080 Brightness: 1000cd/㎡ |
| Touch Pannel | 10-Point Capacitive Screen, G+G; Hardness above 7H; Scratch-resistant; Supports glove touch |
| Camera | Front 5.0MP (USB) Rear 13.0MP (mipi) |
| Buttons | Power Button *1 Volumn + key *1 Volumn - key *1 Customized key *2（Default: P1 for opening the Control Center, P2 for opening the camera） F key *1 (Barcode scanning) |
| Speaker | Built in 4Ω/3W waterproof speaker *2 |
| Microphone | Sensitivity: -38dB±3db |
| Sensor | G-Sensor |
| Fan | IPX5 fan *1 |
| RTC Battery | 3.0V/220MAH |
| Small Battery | Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5H (Default 50% volume, 200 lumens brightness, playing 1080P HD video) |
| Large Battery | Removable Polymer Lithium-ion Battery, Hot-swappable 4700mah/11.4V（53.58WH） 8 hours(playing 1080P video, conditions: 300 lumens at room temperature, 70dB at 30cm) |
| WIFI | AX200 bands: Supports Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Frequency: 2.4G+5.8G Dual-band WIFI |
| Bluetooth | BT5.1 (BLE) class1 Data transmission distance: 10m |
| 4G | 4G (M.2 interface, European version ) LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| GPS | Supports single GPS or single Glonass, default GPS |

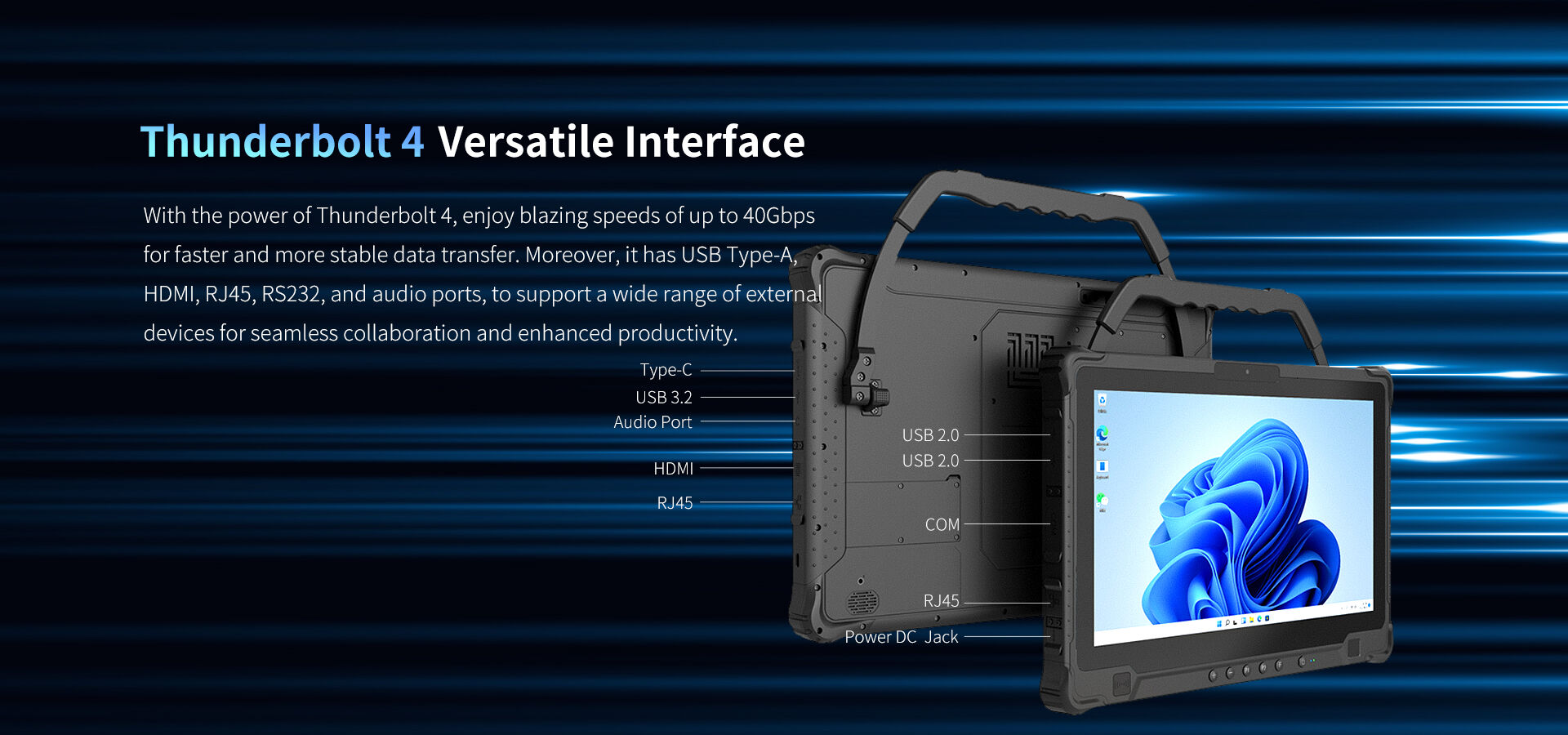

| I/O Interfaces | USB3.2 *1，USB2.0 *2 |
| TYPE-C, Supports Thunderbolt 4 | |
| ∮3.5mm Standard Earphone Jack *1 | |
| HDMI 2.0a mini x1 | |
| SIM card *1 | |
| TF card *1 | |
| RJ45*1 10M/100M/1000M self-adaptive RJ45*1 10M/100M/1000M self-adaptive (USB2.0), supports Gigabit Ethernet protocol | |
| RS232 *1, 9 fully functional lines | |
| DC19V/3.78A ∮5.5mm power interface *1 | |
| 12PIN Pogo Pin (USB & Charging) *1 | |
| Power Adapter | AC100~240V, 19V/3.78A 71.82W output ANZ Standard |
| Power Indicator Light | 1. Power On: Power indicator remains solid. 2. Power Off: Power indicator turns off. 3. Sleep Mode: Power indicator blinks. |
| Baterry Indicator Light | 1. Charging: Charging indicator remains solid (red). 2. Fully Charged: Charging indicator remains solid (green). 3. Large Battery Not Connected: Charging indicator flashes quickly (red). 4. Low Battery (10%) Without Adapter Connected: Charging indicator flashes quickly (red) |
| Rugged Features | MIL-STD-810H: 1.22m drop resistance |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Electrostatic Discharge: ±4kV contact discharge, ±8kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certifications | IP65 |
| CE | |
| MIL-STD-810H | |
| Battery: UN3803, MSDS, IEC62133, Aviation, Shipping Report | |
| Data Collection | Fingerprint Built in, used for power-on login. |
| NFC | |
| 2D Barcode Scanner | |
| Accessories | Handle |
| DC19V/3.78A adapter | |
