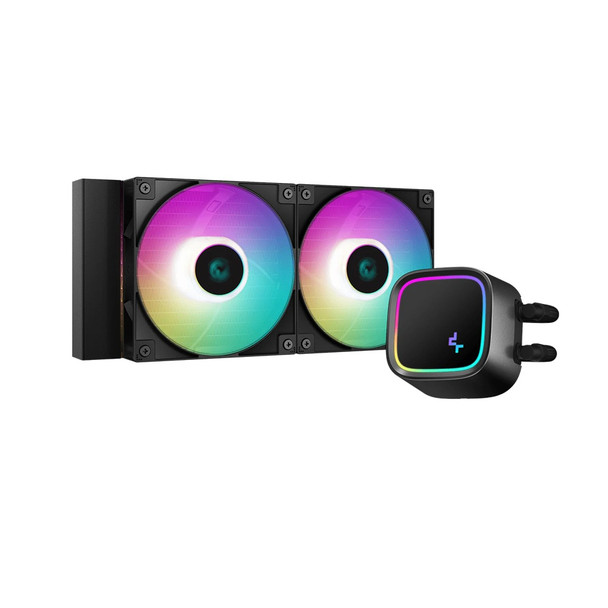

Deepcool LE520 Black 240mm ARGB Liquid Cooler

Deepcool LE520 Black 240mm ARGB Liquid Cooler LE520 Black

POWERFUL HEAT DISSIPATION

Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 WH achieves excellent heat dissipation of 220W TDP.

NEW SERIES DESIGN

The LE520 WH features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

HIGH-PERFORMANCE ARGB FANS

The included high-performance ARGB fans are vibrant, bright, and support various motherboard synchronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.

ANTI-LEAK TECHNOLOGY

The LE520 WH liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.

SIMPLE AND SECURE

The installation is simple and compatible with the latest mainstream Intel and AMD processors.

Net Weight

1238 g

Radiator Dimensions

282×120×27 mm(L×W×H)

Radiator Material

Aluminum

Tube length

410 mm(L×W×H)

Pump Dimensions

91×80×52 mm(L×W×H)

Pump Speed

2400 RPM±10%

Pump Noise

17.8 dB(A)

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.2 A

Pump Power Consumption

2.4 W

Fan Dimensions

120×120×25 mm(L×W×H)

Fan Speed

500~2250RPM±10%

Fan Airflow

85.85 CFM

Fan Air Pressure

3.27 mmAq

Fan Noise

=32.9 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.25 A

Fan Power Consumption

3.0 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.25 W(PUMP)/ 2.1 W(FAN×2)
